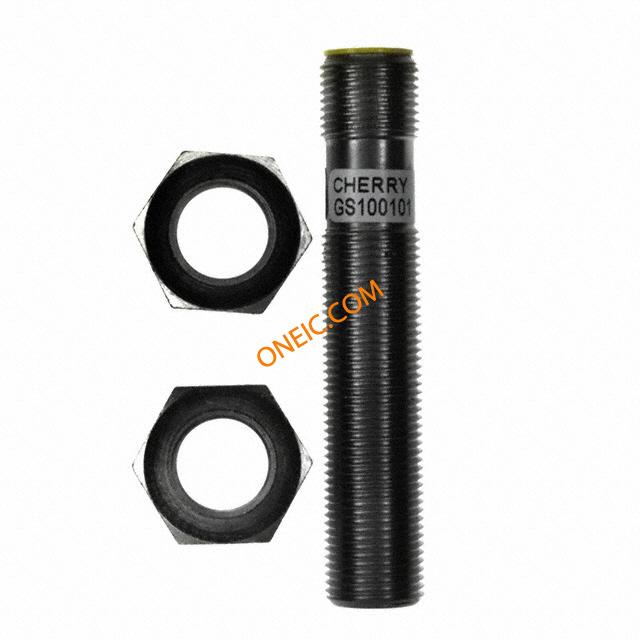

GS100101
| Manufacturer | |
| Description | Industrial Hall Effect / Magnetic Sensors HALL EFFECT 24VDC 6mA GEARTOOTH SPEED SENSOR ASSEMBLIES SENSOR SPEED HALL EFFECT M12 Speed Sensors HALL EFFECT 24VDC 6mA Hall Effect Geartooth Speed Sensor 4-Pin Hall Effect Geartooth Speed Sensor 4-Pin Product Highlights:Sense Motion of Ferrous Geartooth TargetsNear-Zero Speed Sensing CapabilityImmune from Hostile EnvironmentsNot Subject to Rotational OrientationHigh-Speed CapabilitySinking (Open Collector) OutputReverse Battery Protection to -24VdcWide Operating and Storage Temperature RangeM12 Integral Connector Meets IEC60947 - 5 - 2Meet all IEC (International Electrotechnical Commission) Requirements for Heavy Industrial Environments, Assuring Immunity from:Electrostatic DischargeElectrical TransientsRadiated Electric FieldConducted EnergyMagnetic Field Energy HALL EFFECT SENSOR Sensor |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 126 Days | Other Names | CH704 |
| Subcategory | Sensor Misc | Product Category | Speed Sensors |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
| Tariff No | 90318038 | ||
Electrical
| Output Type | Digital | Current - Output | :6mA |
| Current - Supply | :6mA | Voltage - Supply | 5 V ~ 24 V |
| Voltage - Supply (Vcc/Vdd) | :5VDC to 24VDC | ||
Mechanical
| Weight | 0.032 | Lead Style | Cable |
| Mounting Type | Panel | Connector Type | :Connector |
| Mounting Style | Panel | Package / Case | Barrel, Stainless Steel |
| Length - Overall | 65.5 | Actuator Material | Ferrous Metals, Gear Tooth |
| Termination Style | Connector | Number of Positions | 4 |
Product Info
| Type | Hall Effect | Printed Circuit Board | 4 |
| Leaded Process Compatible | :No | ||
Environmental
| Temperature - Test | :No | Operating Temperature | + 105 C |
