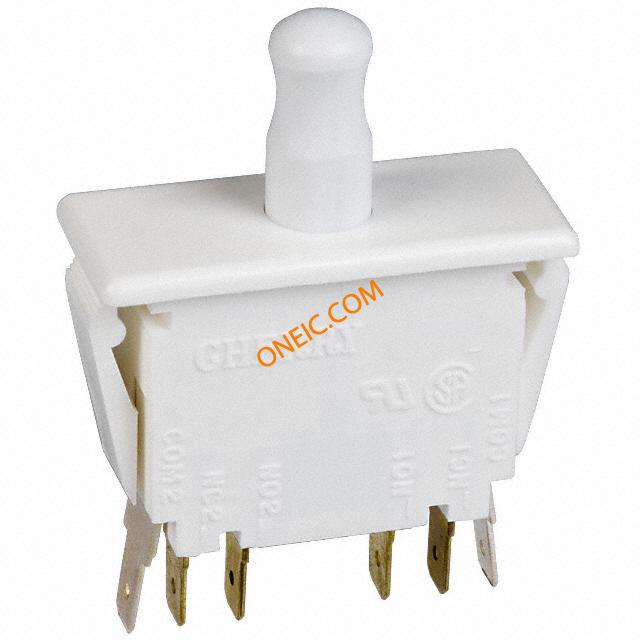

E79-30A
| Manufacturer | |
| Description | Pushbutton Switches 10A DPST MOM QC TERM Switch Push Button N.O./N.C. DPDT Button 10A 250VAC 248.57VA Momentary Contact Quick Connect Panel Mount SW MOM INTRLCK 10A DPDT QC 125V DPDT-NO/NC Push Button Switch, 10 A @ 250 V ac Switch Push Button N.O./N.C. DPDT Button 10A 250VAC 248.57VA Momentary Contact Quick Connect Panel Mount Product Highlights: Choice of Momentary, Push-Pull (reset) and Cheat Interlock switches Snap-in panel mounting Long-life coil spring, snap-action mechanism Agency approved extended-life versions available VDE approval available on select models (F Series) Various terminal forms available (consult factory) |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 87 Days | Subcategory | Switch Push Button |
| Part # Aliases | 0E7930A0 | Product Category | Pushbutton Switches |
| Standard Package | 1,000 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | DPDT | Power - Rated | 248.57@UL |
| Voltage Rating | 250 V | Switch Function | Push - Pull |
| Differential Travel | 0.075" (1.9mm) | Current Rating (Max) | 10 A |
| Voltage - Input (Min) | 250 | Switch Function/Rating | N.O./N.C. |
| Contact Rating (Current) | 10 A @ 250 V ac | ||
Mechanical
| Depth | 17.27 | Height | 49 |
| Packaging | Bulk | Pretravel | 0.125" (3.2mm) |
| Overtravel | 0.100" (2.54mm) | Contact Form | DPST |
| Actuator Type | Round | Mounting Type | Panel Mount |
| Terminal Type | Quick Connect | Contact Finish | Silver Cadmium Oxide |
| Mounting Style | Panel | Operating Force | 757gf |
| Contact Material | Silver Cadmium Oxide | Length - Overall | 39.88 |
| Actuator Material | Thermoplastic Acetal | Termination Style | Solder |
| Actuator Style/Size | Button | Switch Actuation Level | DPDT |
| Contact Layout, Typical | DPDT-NO/NC | ||
Product Info
| Series | E79 Series | Function | Momentary Contact |
| Electrical Life | 6,000 Cycles | Industry Aliases | 0E7930A0 |
| Operating Position | 0.610" (15.5mm) | ||
Environmental
| Seal Rating | Unsealed | Operating Temperature | -40°C ~ 85°C |
