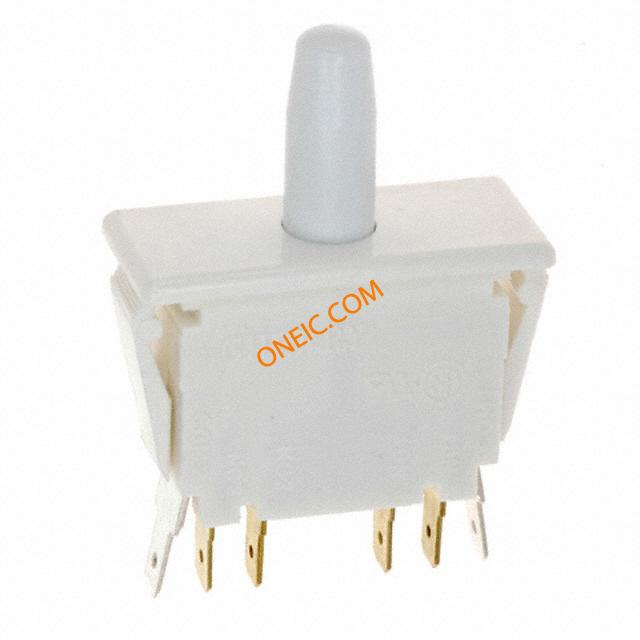

E79-00A
| Manufacturer | |
| Description | Pushbutton Switches 10A DPDT MOM QC TERM SW MOM 10A DPDT QC TERM 125V DPDT-NO/NC Push Button Switch, 10 A @ 250 V ac Switch Push Button N.O./N.C. DPDT Button 10A 250VAC 248.57VA Momentary Contact Quick Connect Panel Mount Switch Push Button N.O./N.C. DPDT Button 10A 250VAC 248.57VA Momentary Contact Quick Connect Panel Mount Product Highlights: Choice of Momentary, Push-Pull (reset) and Cheat Interlock switches Snap-in panel mounting Long-life coil spring, snap-action mechanism Agency approved extended-life versions available VDE approval available on select models (F Series) Various terminal forms available (consult factory) |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 63 Days | Subcategory | Switch Push Button |
| Part # Aliases | 0E7900A0 | Product Category | Pushbutton Switches |
| Standard Package | 1,000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | DPDT | Voltage Rating | 125V |
| Switch Function | On-Mom | Differential Travel | 0.075" (1.9mm) |
| Current Rating (Max) | 10A (AC) | Switch Function/Rating | Momentary |
| Contact Rating (Current) | 10 A @ 250 V ac | ||
Mechanical
| Packaging | Bulk | Pretravel | 0.125" (3.2mm) |
| Overtravel | 0.375" (9.5mm) | Contact Form | DPDT |

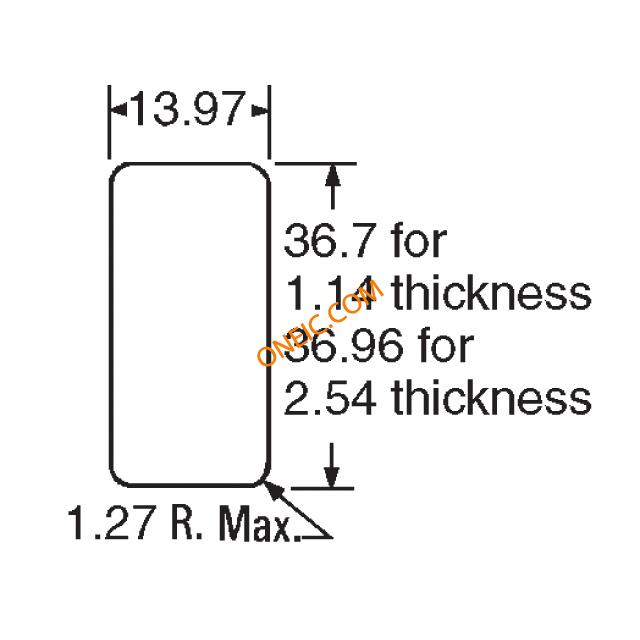

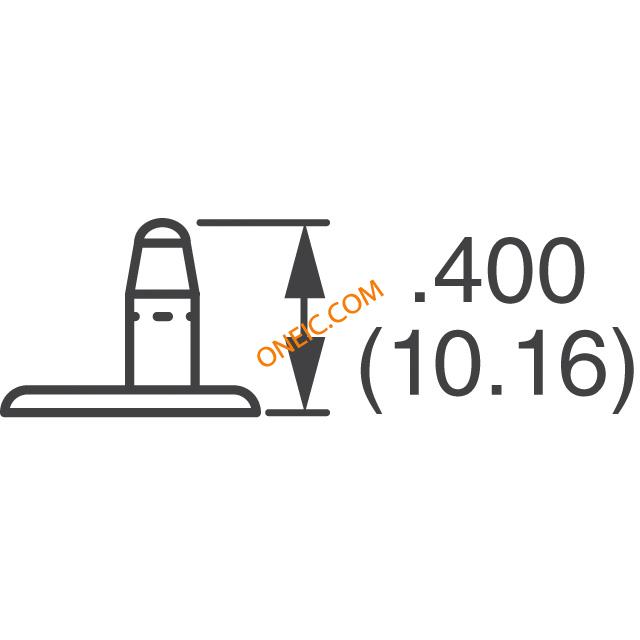

| Actuator Type | Round (Pin Plunger) | Mounting Type | Panel Mount, Snap-In |
| Terminal Type | Tab | Contact Finish | Silver Cadmium Oxide |
| Mounting Style | Through Hole | Operating Force | 680gf |
| Contact Material | Silver Cadmium Oxide | Termination Style | Quick Connect - 0.187" (4.7mm) |
| Contact Layout, Typical | DPDT-NO/NC | ||
Product Info
| Series | E79 Series | Electrical Life | 6,000 Cycles |
| Industry Aliases | 0E7900A0 | Operating Position | 0.720" (18.3mm) |
Environmental
| Seal Rating | Unsealed | Operating Temperature | -40°C ~ 85°C |
