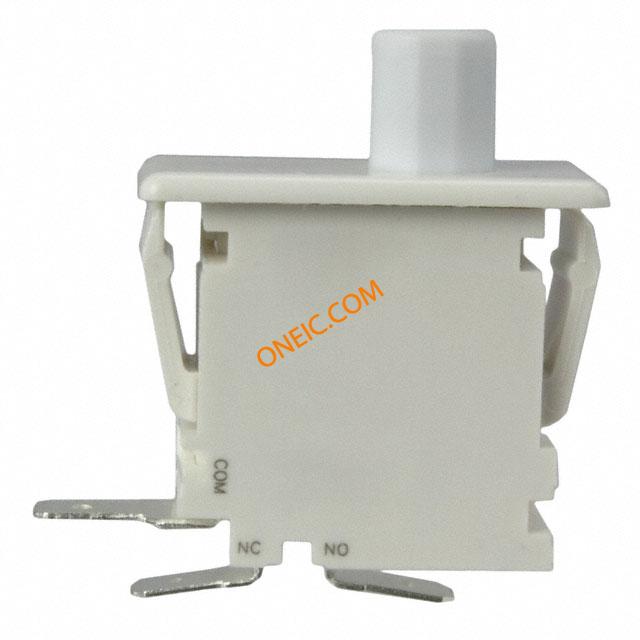

E68-40A
| Manufacturer | |
| Description | Pushbutton Switches SPDT .1A QC TERM SWITCH SNAP SHRT SPDT.1A QC TERM Switch Push Button N.O./N.C. SPDT Button 0.1A 125VAC Momentary Contact Quick Connect Panel Mount Switch Push Button N.O./N.C. SPDT Button 0.1A 125VAC Momentary Contact Quick Connect Panel Mount Product Highlights: Choice of Momentary, Push-Pull (reset) and Cheat Interlock switches Snap-in panel mounting Long-life coil spring, snap-action mechanism Agency approved extended-life versions available VDE approval available on select models (F Series) Various terminal forms available (consult factory) |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 129 Days | Subcategory | Switch Push Button |
| Part # Aliases | 0E6840A0 | Product Category | Pushbutton Switches |
| Standard Package | 1,000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPDT | Voltage Rating | 125V |
| Switch Function | On-Mom | Differential Travel | 0.045" (1.1mm) |
| Current Rating (Max) | 100mA (AC) | ||
Mechanical
| Packaging | Bulk | Pretravel | 0.125" (3.2mm) |
| Overtravel | 0.175" (4.5mm) | Contact Form | SPDT |
| Actuator Type | Round (Pin Plunger) | Mounting Type | Panel Mount, Snap-In |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Operating Force | 425gf | Termination Style | Quick Connect - 0.187" (4.7mm) |
Product Info
| Electrical Life | 6,000 Cycles | Operating Position | 0.300" (7.6mm) |
Environmental
| Seal Rating | Unsealed | Operating Temperature | -40°C ~ 85°C |
