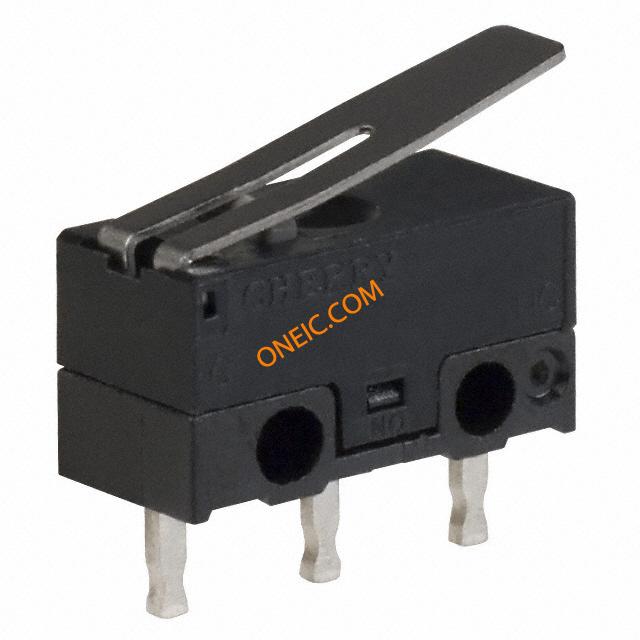

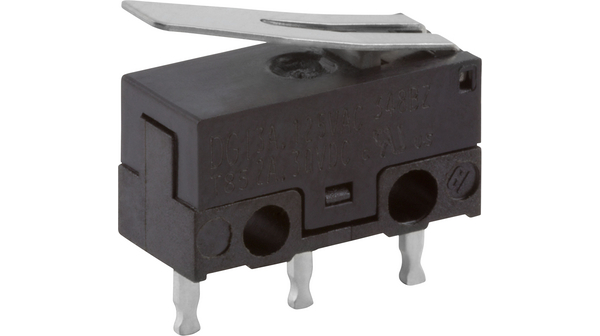

DG13-B1LA
| Manufacturer | |
| Description | Basic / Snap Action Switches SPDT 3A PC MNT SWITCH LEVER SPDT 3A PC MNT 125V SPDT-NO/NC Hinge Lever Microswitch, 3 A @ 125 V ac Switch Snap Action N.O./N.C. SPDT Straight Lever PC Pins 3A 125VAC 30VDC 0.44N Thru-Hole MICROSWITCH, SPDT, SHORT LEVER Micro switch 3 A Flat lever 1 NO+1 NC, DG13-B1LA, Cherry |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Basic / Snap Action Switches | Standard Package | 1,000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85365080 |
| Approval Agency | :UL Recognised | Material Flammability Rating | :UL94V-O |
Electrical
| Circuit | SPDT | Voltage - Core | :250V |
| Voltage Rating | 125 V | Number of Poles | :1 |
| Switch Function | On-Mom | Voltage - Rated AC | 125V VAC |
| Differential Travel | 0.020" (0.5mm) | Current - Modulation | :3A |
| Current Rating (Max) | 3 A | Current - Max/Contact | :3A |
| Switch Function/Rating | :(Not Applicable) | Contact Rating (Current) | 3 A @ 125 V ac |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - DC Spark Over (Nom) | 30V VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Depth | 5.8 mm | Width | :12.8mm |
| Height | 8.31 mm | Length | :6.5mm |
| Weight | 0.0008 | Material | :PPHS/PBT |
| Packaging | Bulk | Pretravel | 0.071" (1.8mm) |
| Overtravel | 0.022" (0.55mm) | Contact Form | SPDT |
| Actuator Type | Lever | Mounting Type | Through Hole |
| Terminal Type | PCB | Mounting Style | Through Hole |
| Package / Case | :PBT (Polybutylene Terephthalate) | Operating Force | 45 g |
| Contact Material | Silver Alloy | Length - Overall | 14 mm |
| Mounting Feature | :6.5mm | Termination Style | Solder Pin |
| Color - Connectors | :Grey | Actuator Style/Size | Lever |
| Number of Positions | :6000 | Switch Actuation Level | SPDT |
| Contact Layout, Typical | SPDT-NO/NC | ||
Product Info
| Type | Sub-Miniature Snap-Action Switches | Series | DG |
| DELETED | Compliant | Electrical Life | 10,000 Cycles |
| Operating Position | 0.268" (6.8mm) | ||
Environmental
| Mechanical Life | 1,000,000 Cycles | NEMA Frame Size | :IP40 |
| Ingress Protection | IP40 | Operating Temperature | -25°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
