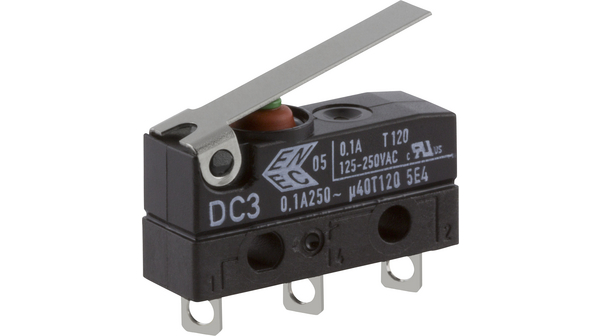

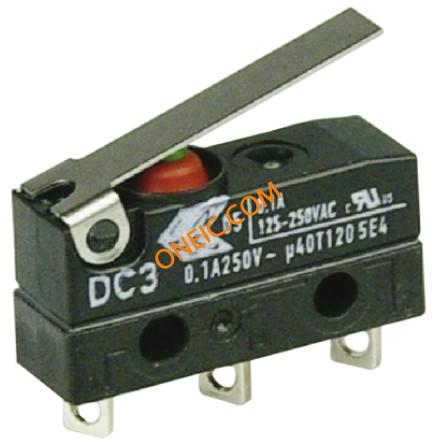

DC3C-A1LB
| Manufacturer | |
| Description | Basic / Snap Action Switches 0.1A .110 SS LEVER SW LEVER SEALED .1A SS TERM 125V SPDT-NO/NC Short Lever Microswitch, 0.1 A @ 250 V ac, 0.1 A @ 30 V dc MICROSWITCH, SPDT, SHORT LEVER Switch,SubMiniature,WATERPROOF,0.1AMPS,LEVERActuator,GOLDCONTACTS Micro switch 0.1 A Flat lever, short 1 change-over (CO), DC3C-A1LB, Cherry |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Basic / Snap Action Switches | Standard Package | 560 |
Compliance
| RoHS | Compliant | Tariff No | 85365080 |
| Approval Agency | :ENEC, VDE | Material Flammability Rating | :UL 94V-O |
Electrical
| Circuit | SPDT | Voltage - Core | :250V |
| Voltage Rating | 125V | Number of Poles | :1 |
| Switch Function | On-Mom | Differential Travel | 0.030" (0.8mm) |
| Current - Modulation | :100mA | Current Rating (Max) | 100mA (AC) |
| Current - Max/Contact | :100mA | Switch Function/Rating | :(Not Applicable) |
| Contact Rating (Current) | 0.1 A @ 250 V ac, 0.1 A @ 30 V dc | Connector - Voltage Input | :Quick Connect, Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | :6.5mm | Width | :20mm |
| Length | :9.25mm | Weight | 0.0018 |
| Material | :PET/PBT | Packaging | Bulk |
| Pretravel | 0.178" (4.5mm) | Overtravel | 0.060" (1.5mm) |
| Contact Form | SPDT | Actuator Type | Lever, Straight |
| Mounting Type | Chassis Mount | Terminal Type | Solder |
| Package / Case | :PBT (Polybutylene Terephthalate), PET (Polyethylene Terephthalate) | Operating Force | 82gf |
| Contact Material | Gold | Mounting Feature | :22.2mm |
| Termination Style | Solder Lug | Actuator Style/Size | :Roller Lever |
| Switch Actuation Level | :Snap Action | Contact Layout, Typical | SPDT-NO/NC |
Product Info
| Type | Miniature | Series | DC |
| Electrical Life | 100,000 Cycles | Operating Position | 0.420" (10.7mm) |
Environmental
| Seal Rating | IP6K7 | Mechanical Life | 1,000,000 Cycles |
| NEMA Frame Size | :IP6K7 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 120°C | ||
Documents & Media
Similar Parts

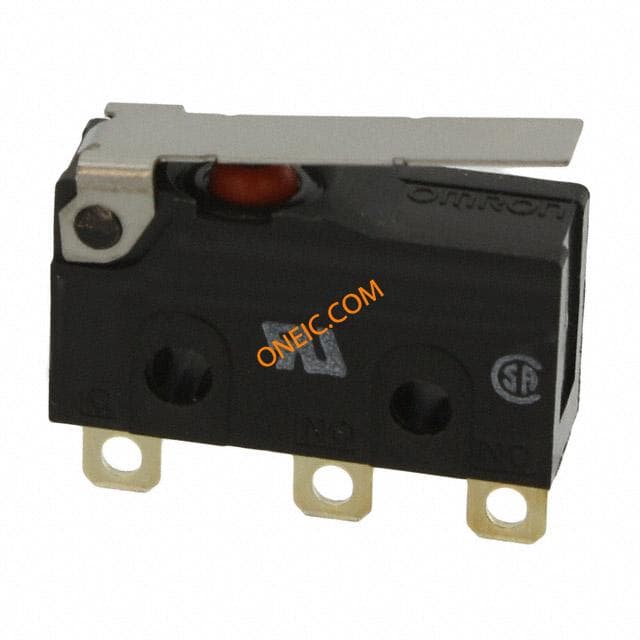

D2SW-01L1H
