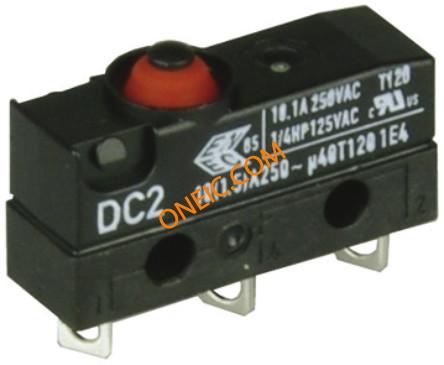

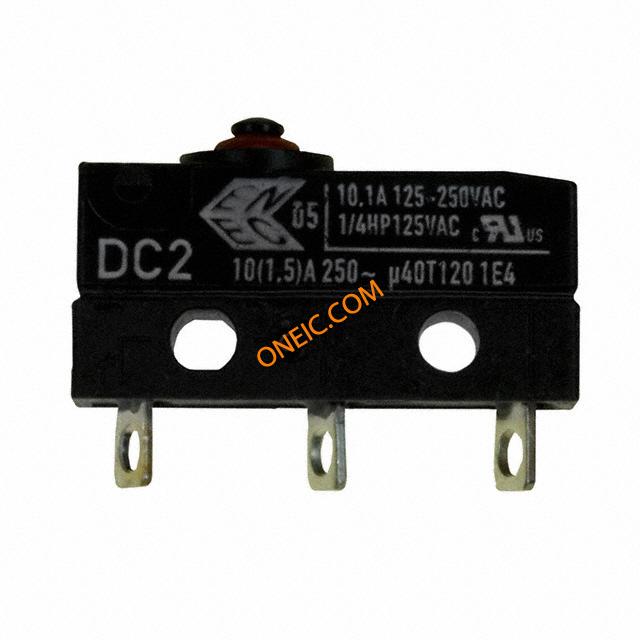

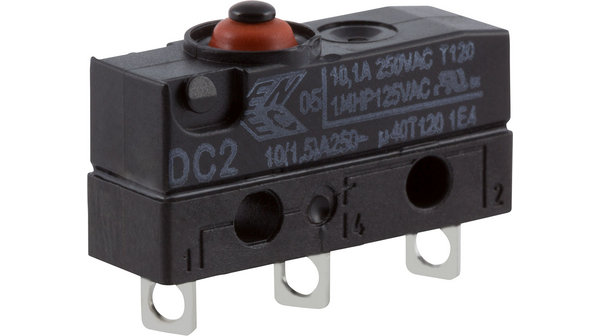

DC2C-A1AA
| Manufacturer | |
| Description | Basic / Snap Action Switches SPDT 10A SEALED SWITCH SNAP SPDT 10A SEALED SPDT-NO/NC Button Microswitch, 10.1 A @ 250 V ac Switch Snap Action N.O./N.C. SPDT Button Solder 10.1A 250VAC 186.42VA 3.33N Screw Mount Switch,SubMiniature,WATERPROOF,10.0AMPS,BUTTONActuator Micro switch 10 A Plunger 1 change-over (CO), DC2C-A1AA, Cherry |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Basic / Snap Action Switches | Standard Package | 1,200 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Circuit | SPDT | Voltage Rating | 250 V |
| Switch Function | On-Mom | Voltage - Rated AC | 250V VAC |
| Differential Travel | 0.004" (0.1mm) | Current Rating (Max) | 10.1 A |
| Contact Rating (Current) | 10.1 A @ 250 V ac | ||
Mechanical

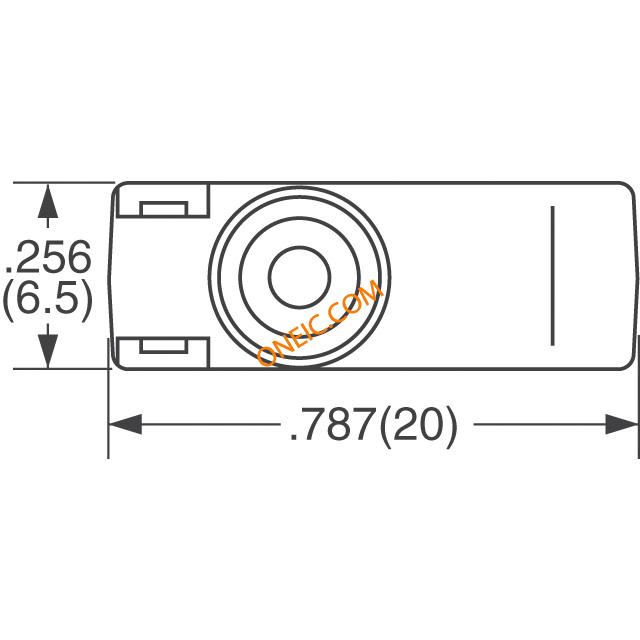

| Depth | 6.5 mm | Height | 14.85 mm |
| Packaging | Bulk | Pretravel | 0.040" (1.0mm) |
| Overtravel | 0.025" (0.6mm) | Contact Form | SPDT |
| Actuator Type | Button | Mounting Type | Chassis Mount |
| Terminal Type | Solder | Mounting Style | Screw |
| Operating Force | 340 cN | Contact Material | Silver Alloy |
| Length - Overall | 20 mm | Termination Style | Solder Lug |
| Actuator Style/Size | Button | Switch Actuation Level | SPDT |
| Contact Layout, Typical | SPDT-NO/NC | ||
Product Info
| Type | Sealed Sub-Miniature Snap-Action Swithces | Series | DC |
| Electrical Life | 6,000 Cycles | Operating Position | 0.330" (8.4mm) |
Environmental
| Seal Rating | IP6K7 | Mechanical Life | 1,000,000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 120°C |
| Operating Temperature - Junction | 120C | ||
