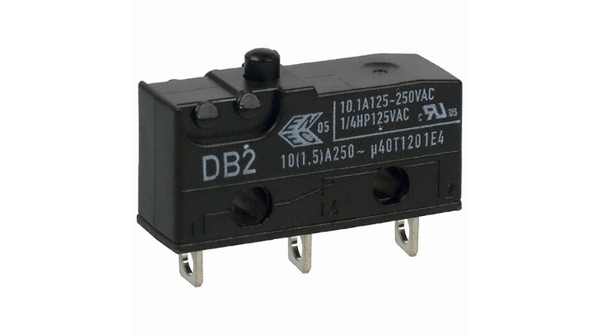

DB2C-A1AA
| Manufacturer | |
| Description | Basic / Snap Action Switches SPDT 10A SLDR SHORT SPDT-NO/NC Button Microswitch, 10.1 A @ 250 V ac MICROSWITCH, SPDT, PLUNGER ACTUATOR BUTTONSOLDER Micro switch 10 A Plunger Snap-action switch 1 NO+1 NC, DB2C-A1AA, Cherry |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85365080 |
| Approval Agency | :ENEC, KEMA-KEUR | Material Flammability Rating | :UL 94V- O |
Electrical
| Voltage - Core | :250V | Number of Poles | :1 |
| Differential Travel | :0.10mm | Current - Modulation | :10A |
| Current - Max/Contact | :10.1A | Switch Function/Rating | :(Not Applicable) |
| Contact Rating (Current) | 10.1 A @ 250 V ac | Connector - Voltage Input | :Solder |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | :6.5mm | Width | :20mm |
| Length | :9mm | Weight | 0.0018 |
| Material | :PET | Pretravel | :1.0mm |
| Overtravel | :0.6mm | Actuator Type | Button |
| Terminal Type | Solder | Package / Case | :PET (Polyethylene Terephthalate) |
| Operating Force | 2.45 N | Contact Material | Gold; Silver Alloy |
| Mounting Feature | :9.5mm | Actuator Style/Size | :Plunger |
| Number of Positions | :6000 | Switch Actuation Level | :Snap Action |
| Contact Layout, Typical | SPDT-NO/NC | ||
Product Info
| Series | :DP | ||
Environmental
| Mechanical Life | 15000000Operations | NEMA Frame Size | :IP50 |
| Operating Temperature | +120°C | ||
