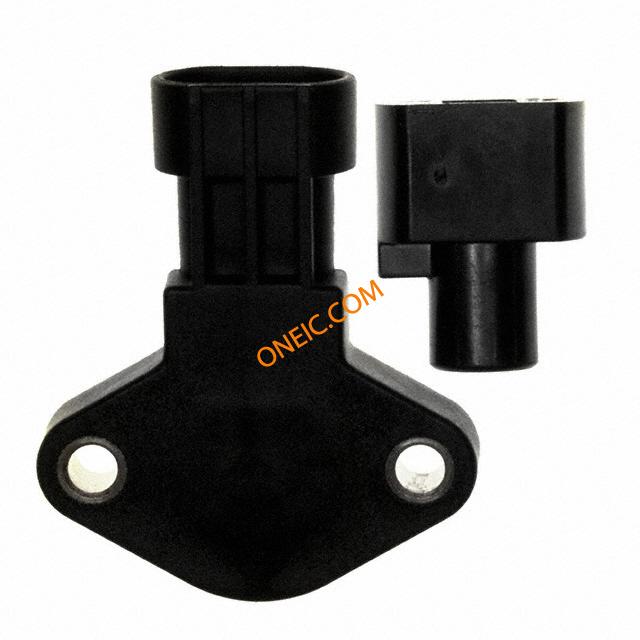

CU103602
| Manufacturer | |
| Description | Board Mount Motion & Position Sensors 360 Degree Sense Rg AN820002 RotaryPosition Sensor 16V SENSOR MAGN PROG 5VDC RANGE 360 Cherry Angular Position Sensor Magnet, 57.33 x 48.3 x 17.7mm Industrial Motion & Position Sensors 360 Degree Sense Rg AN820002 SENSOR, MAGNETIC POSITION, AN8 SERIES SENSOR Sensor,MagnetAssembly,360Degrees Cherry 角位置传感器 磁铁, 57.33 x 48.3 x 17.7 mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 126 Days | Subcategory | Angular and Linear Position Sensor |
| Product Category | Industrial Motion & Position Sensors | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
| Tariff No | 90318038 | ||
Electrical
| Linearity | ±2% | Sensor Type | Angular, Rotary |
| Sensing Distance | 5 mm | Voltage - Supply | 5V |
| Voltage - Supply (Min) | 16 | ||
Mechanical
| Width | 48.3mm | Height | 17.7mm |
| Length | 57.33mm | Weight | 0 |
| Packaging | 4.5 | Termination | Connector |
| Mounting Type | Screw | Length - Overall | 57.33 |
| Primary Material | Position | ||
Product Info
| Type | Rotary | Function | Position |
| Technology | HallEffect | Accessory Type | :Magnet Assembly |
| Other Specifications | 360° | Application Specifics | Angular Position Sensor |
| For Use With/Related Products | :AN820002 Series Sensors | ||
Environmental
| Ingress Protection | IP67 | Operating Temperature | -40°C ~ 150°C |
