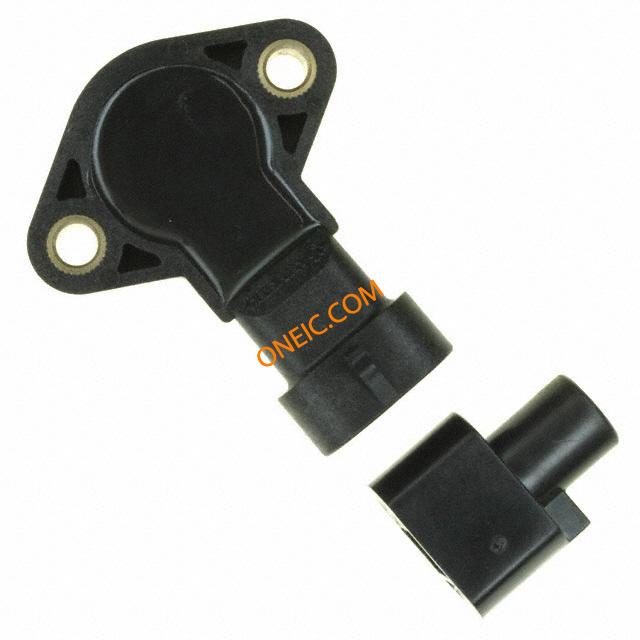

CU103601
| Manufacturer | |

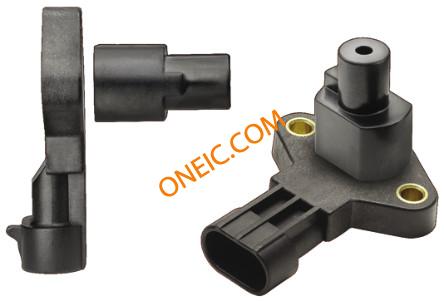

| Description | Board Mount Motion & Position Sensors 180 Degree Sense Rg AN820001 w/Magnet SENSOR MAGN PROG 5VDC RANGE 180 Cherry Angular Position Sensor Magnet, 57.33 x 48.3 x 17.7mm RotaryPosition Sensor 16V RotaryPosition Sensor 16V Product Highlights:Rugged design with current switching up to 20 amps2-color molded button available for maximum visibilityLighted and non-lighted versionsSplash-proof option availableAvailable in a wide variety of colorsFits to 3 panel cut-out widths SENSOR, MAGNETIC POSITION, AN8 SERIES SENSOR Sensor,MotionandPosition,BoardMount,180DegreeSensewithMagnet,5mm Cherry 角位置传感器 磁铁, 57.33 x 48.3 x 17.7 mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 126 Days | Subcategory | Angular and Linear Position Sensor |
| Product Category | Board Mount Motion & Position Sensors | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 90318038 |
Electrical
| Linearity | ±2% | Output Type | Analog |
| Sensor Type | Angular, Rotary | Sensing Distance | 5 mm |
| Voltage - Supply | 5V | ||
Mechanical

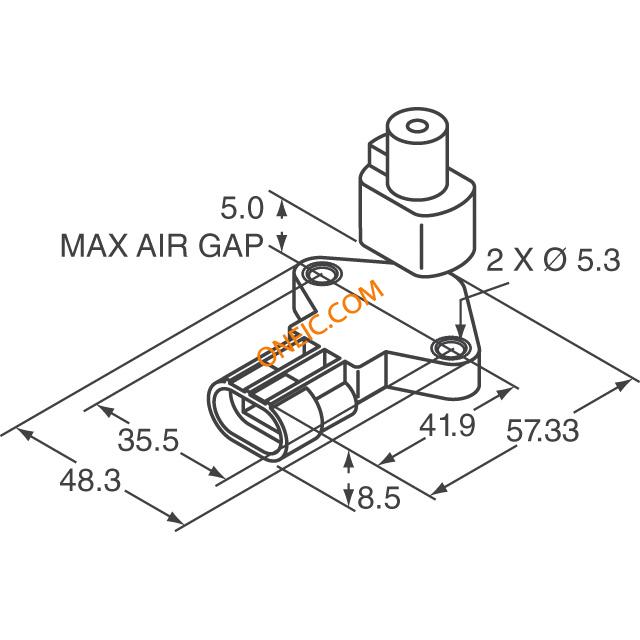

| Width | 48.3mm | Height | 17.7mm |
| Length | 57.33mm | Weight | 0 |
| Termination | Connector | Primary Material | Position |
Product Info
| Type | HallEffect | Function | Position |
| Technology | HallEffect | Accessory Type | :Magnet Assembly |
| Other Specifications | 180° | Application Specifics | Angular Position Sensor |
| For Use With/Related Products | :AN820001 Series Sensors | ||
Environmental
| Ingress Protection | IP67 | Operating Temperature | -40°C ~ 150°C |
