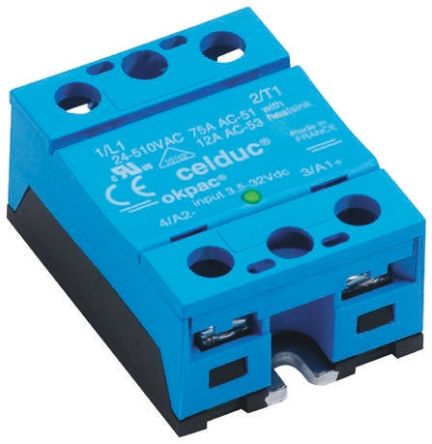

SO769090
| Manufacturer | |
| Description | 150A Screw Mount, Random Triac Solid State Relay, 510V rms Celduc 125 A 底盘安装安装 固态继电器, 三端双向可控硅开关元件输出, 随机切换, 510 V 有效值 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Output | Triac | Voltage - Supply | 32 V |
| Battery Pack Voltage | 24 V ac | Current Rating (Max) | 150 A |
| Minimum Load Required | 5 mA | Voltage - Input (Min) | 32 V |
| Input Logic Level - High | 3.5 → 32 V 直流 | Voltage - Limiting (Max) | 510 V 有效值 |
| Current - Quiescent (Max) | 5 mA | ||
Mechanical
| Depth | 45mm | Height | 30mm |
| Length | 58.5mm | Mounting Type | Screw Mount |
| Size / Dimension | 58.5 x 45 x 30mm | Minimum Working Height | 24 V 交流 |
Product Info
| Function | Y | Switch Type | Random |
Environmental
| Operating Temperature | -40 → +100°C | ||
