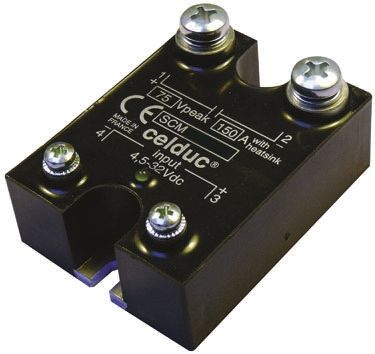

SCM040600
| Manufacturer | |
| Description | 40A Screw Mount MOSFET Solid State Relay, 600V dc Celduc 40 A 底盘安装安装 固态继电器, MOSFET输出, 600 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Output | MOSFET | Turn On Time | 10 μs |
| Voltage - Supply | 0 → 600V 直流 | Battery Pack Voltage | 0 V dc |
| Current Rating (Max) | 40 A | Minimum Load Required | 0 A |
| Voltage - Input (Min) | 32 V dc | Voltage - Supply (Min) | 4.5 V dc |
| Input Logic Level - High | 4.5 → 32 V dc | Voltage - Limiting (Max) | 600 V dc |
| Current - Off State (Max) | 250 μA | Current - Quiescent (Max) | 0 A |
Mechanical
| Depth | 58.2mm | Height | 27mm |
| Length | 44.5mm | Mounting Type | Screw Mount |
| Terminal Type | Screw | Size / Dimension | 44.5 x 58.2 x 27mm |
| Termination Style | 螺丝 | Minimum Working Height | 0 V dc |
| Operating Force - Mid Compression | 10 μs | ||
Environmental
| Operating Temperature | -40 → +90°C | ||
