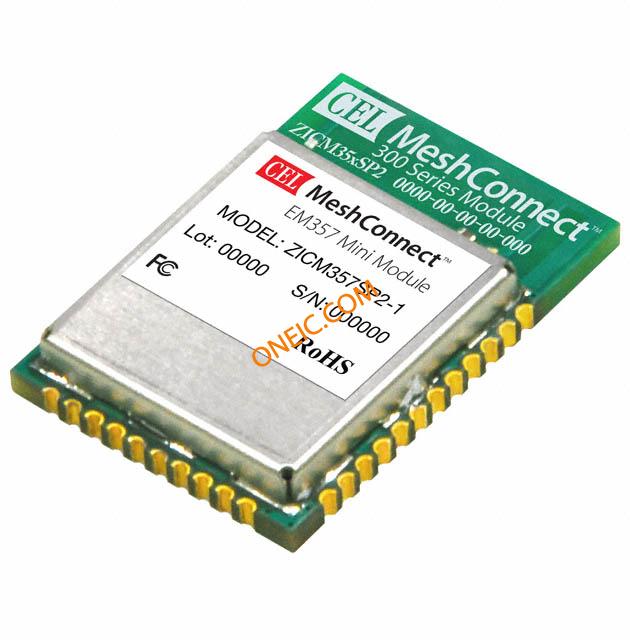

ZICM357SP2-1C-B
| Manufacturer | |
| Description | Zigbee / 802.15.4 Modules 2.4GHz, OP=20dBm Vdd 3.6Volt Max. RF TXRX EM357 MINI MODULE |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 66 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Data Rate | 250 Kbps | Frequency | 2.4GHz |
| Memory Size | 192kB Flash, 12kB RAM | Sensitivity | - 103 dBm |
| Output Power | 20 dBm | Data Interface | PCB, Surface Mount |
| Power - Output | 20dBm | Data Rate (Max) | 250kbps |
| Current - Supply | 34 mA | Voltage - Supply | - 0.3 VDC to + 3.5 VDC |
| Current - Receiving | 34mA | Current - Transmitting | 150mA |
| Current - Supply (Main IC) | 58 mA | Frequency Bands (Low / High) | 2.405 GHz to 2.48 GHz |
Mechanical
| Packaging | Bulk | Package / Case | Module |
| Size / Dimension | 0.94 in x 0.655 in | Antenna Connector | External |
Product Info
| Applications | General Purpose | Modulation or Protocol | 802.15.4 Zigbee |
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Operating Temperature | -40°C ~ 85°C |
