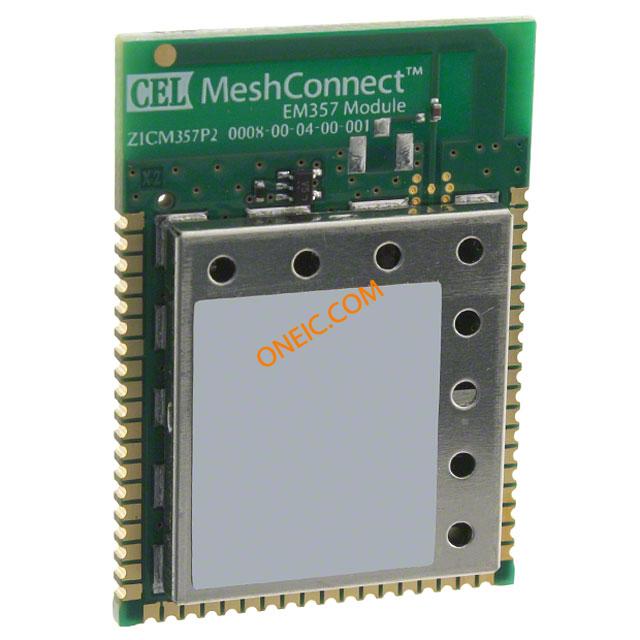

ZICM357P2-1
| Manufacturer | |
| Description | Zigbee / 802.15.4 Modules MeshConnect Module 2405-2480MHz MOD EM357 ZIG 802.15.4 PCB ANT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Zigbee / 802.15.4 Modules | Standard Package | 140 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Data Rate | 250 kbps | Frequency | 2.405GHz ~ 2.48GHZ |
| Interface | SPI, TWI, UART | Memory Size | 192kB Flash, 12kB RAM |
| Sensitivity | - 100 dBm | Output Power | 20 dBm |
| Sensing Range | 13000 ft | Data Interface | Pads for Pins |
| Power - Output | 20dBm | Data Rate (Max) | 250kbps |
| Current - Supply | 28 mA | Voltage - Supply | 3.3 V |
| Current - Receiving | 28mA | Current - Transmitting | 170mA |
| Current - Supply (Main IC) | 170 mA | Frequency Bands (Low / High) | 2.405 GHz to 2.48 GHz |
Mechanical
| Packaging | Tray | Package / Case | Module |
| Size / Dimension | 1.4 in x 1 in x 0.195 in | Antenna Connector | PCB |
Product Info
| Applications | Home/Building Automation, Security, ZigBee™ | Modulation or Protocol | 802.15.4 Zigbee |
Environmental
| Operating Temperature | + 85 C | ||
