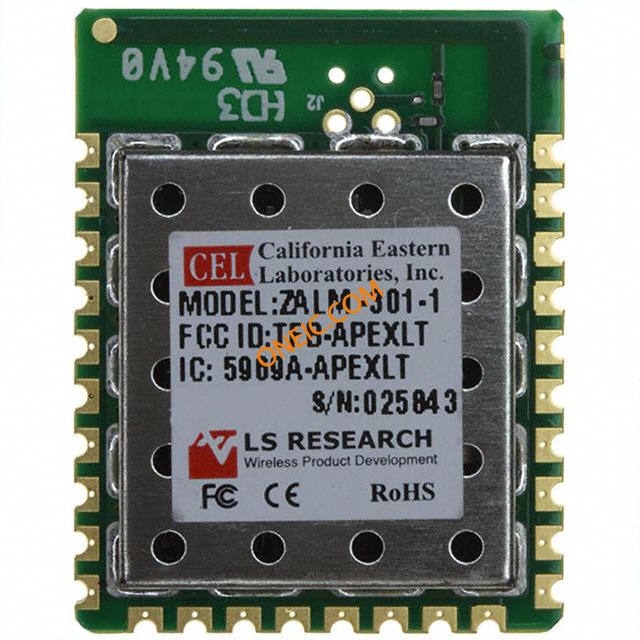

ZALM-301-1
| Manufacturer | |
| Description | Zigbee / 802.15.4 Modules ZIGBEE 802.15.4 LT MODULE ZIGBEE 802.15.4 LT SERIES |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | ZALM3011 | Product Category | Zigbee / 802.15.4 Modules |
| Standard Package | 160 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Data Rate | 250 kbps | Frequency | 2.4GHz |
| Interface | SPI, UART | Sensitivity | - 97 dBm |
| Output Power | 100 mW | Sensing Range | 4000 ft |
| Data Interface | Pads for Pins | Power - Output | 20dBm (100mW) |
| Data Rate (Max) | 250kbps | Current - Supply | 37 mA |
| Voltage - Supply | 2.1 V to 3.6 V | Current - Receiving | 37mA |
| Current - Transmitting | 170mA | Current - Supply (Main IC) | 170 mA |
| Frequency Bands (Low / High) | 2.4 GHz | ||
Mechanical
| Packaging | Tray | Package / Case | PCB Module |
| Size / Dimension | 1.275 in x 1 in x 0.195 in | Antenna Connector | PCB Trace |
Product Info
| Applications | AMR, ISM, ZigBee™ | Modulation or Protocol | 802.15.4 Zigbee |
Environmental
| Operating Temperature | + 85 C | ||
