UPG2422TK-A
| Manufacturer | |
| Description | RF Switch ICs .5-6GHz 3 Volt Typ. IL .55dB at 6GHz IC MMIC SWITCH SPDT 6-MINIMOLD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | UPG2422TKA | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| IIP3 | 57dBm (typ) | P1dB | 31dBm (typ) IP1dB |
| Circuit | SPDT | Frequency | 0.05 GHz to 6 GHz |
| Impedance | 50 Ohm | Isolation | 28 dB |
| Current - Bias | 0.1 uA | Insertion Loss | 0.55 dB |
| Frequency - Max | 6GHz | Voltage - Supply | 5.3 V |
| Voltage - Off State | 28 dB | Frequency - Output 2 | 50MHz |
| Insertion Loss (Max) | 0.55dB @ 6GHz | Switch Function/Rating | SPDT |
| Power - Average Forward | 150 mW | Power Dissipation (Max) | 150 mW |
| Current - Average Rectified (Io) | 0.1 uA | ||
Mechanical

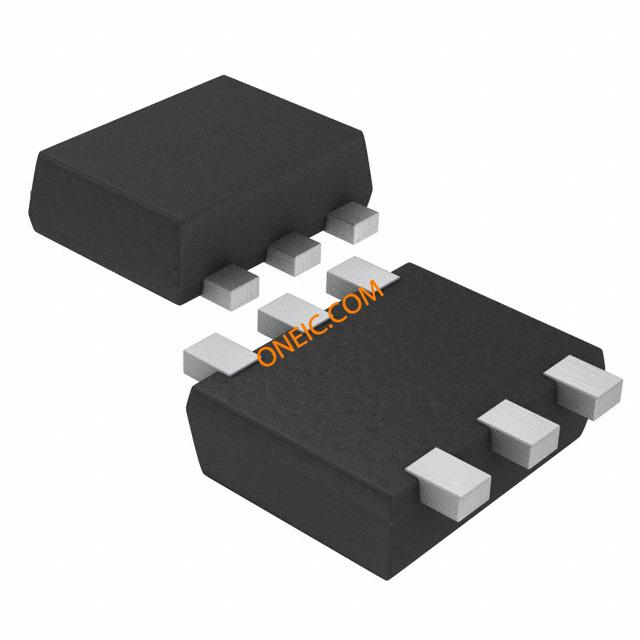

| Packaging | Cut Tape | Package / Case | Minimold-6 |
| Supplier Device Package | 6-Minimold | ||
Product Info
| RF Type | 802.11a/b/g/n | Topology | Reflective |
| Manufacturer | CEL | Number of Switches | Dual |
Environmental
| Operating Temperature | + 85 C | ||
