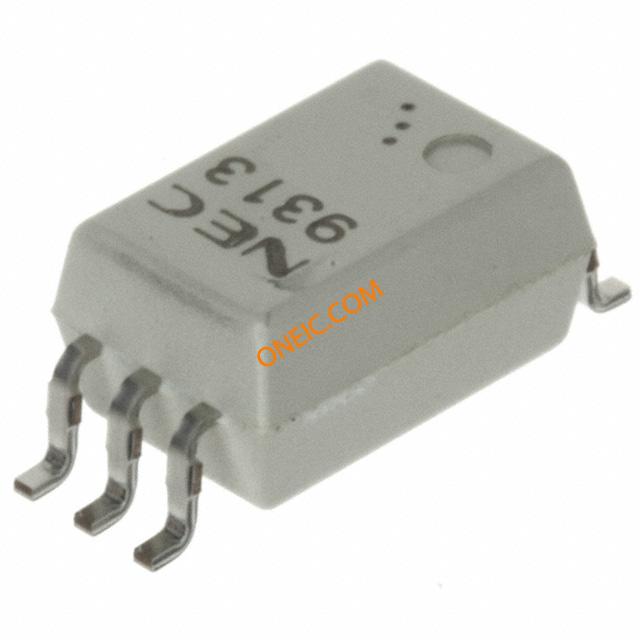

PS9313L-AX
| Manufacturer | |
| Description | High Speed Optocouplers 1Mbps Int PWR Mod Dr HICMR Open Coll Out ISOLATOR 1CH OPEN COL 6-SOIC |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | PS9313LAX | Product Category | High Speed Optocouplers |
| Standard Package | 20 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Output | Photo IC | Data Rate | 1 MBd |
| Input Type | DC | Output Type | Open Collector |
| Data Rate (Max) | 1Mbps | Number of Channels | 1 Channel |
| LED Forward Current | 25 mA | Voltage - Isolation | 5000 Vrms |
| Current Rating (Max) | 15mA | Power Dissipation (Max) | 100 mW |
| Current - Output / Channel | 15mA | Current Transfer Ratio (Min) | 110 % |
| Voltage - Forward (Vf) (Min) | 1.2 V | Current - Peak Pulse (10/1000us) | 25 mA |
| Voltage - Reverse Standoff (Typ) | 5 V | Voltage - Forward (Vf) (Max) @ If | 1.9 V |
| Propagation Delay tpLH / tpHL (Max) | 240ns @ 10mA | Current - Continuous Drain (Id) @ 25degC | 15 mA |
| Current - Average Rectified (Io) (per Diode) | 25mA | ||
Mechanical
| Packaging | Bulk | Mounting Type | Surface Mount |
| Package / Case | SDIP-6 | Supplier Device Package | 6-SDIP Gull Wing |
Product Info
| Series | NEPOC | Output Configuration | Surface Mount |
Environmental
| Operating Temperature | + 110 C | ||
