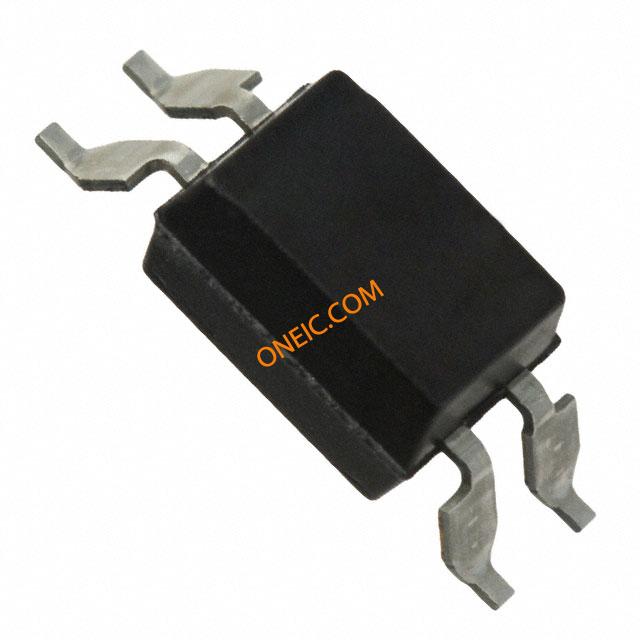

PS2561AL2-1-E3-A
| Manufacturer | |
| Description | Transistor Output Optocouplers SGL Tr DC BSI L2 lead bend OPTOCOUPLER TRANS 5KVRMS 4SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | PS2561AL2-1-E3-ACT | Product Category | Transistor Output Optocouplers |
| Standard Package | 1,000 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Output | NPN Phototransistor | Fall Time | 5 us |
| Input Type | DC | Output Type | Transistor |
| Rise Time (Typ) | 3 us | Voltage - Supply | 1.4 V |
| Number of Channels | 1 Channel | LED Forward Current | 30 mA |
| Voltage - Isolation | 5000 Vrms | Vce Saturation (Max) | 300mV |
| Voltage - Input (Min) | 70 V | Power - Average Forward | 150 mW |
| Power Dissipation (Max) | 150 mW | Current - Input Bias (Max) | 30 mA |
| Current - Output / Channel | 30mA | Current Transfer Ratio (Max) | 400% @ 5mA |
| Current Transfer Ratio (Min) | 400 % | Current - Collector (Ic) (Max) | 30 mA |
| Current - DC Forward (If) (Max) | 30 mA | Voltage - Reverse Standoff (Typ) | 6 V |
| Max Propagation Delay @ V, Max CL | 5 us | Voltage - Forward (Vf) (Max) @ If | 1.4 V |
| Voltage - Gate Trigger (Vgt) (Max) | 6 V | Current - Average Rectified (Io) (per Diode) | 30mA |
Mechanical
| Packaging | Tape | Mounting Type | Surface Mount |
| Package / Case | SMD-4 | ||
Product Info
| Manufacturer | CEL | ||
Environmental
| Operating Temperature | + 100 C | ||
