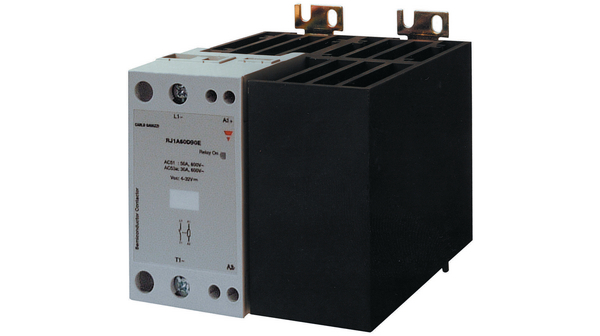

RJ1A60D70E
| Manufacturer | |
| Description | 70A rms DIN Rail Panel Mount, Zero Crossing Solid State Relay, 660V ac SOLID STATE RELAYS SOLITRON POWER - WITH INTEGRATED HEATSINK Solid state relay single phase 4...32 VDC, RJ1A60D70E, Carlo Gavazzi |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Turn On Time | 1/2 cycle | Voltage - Test | 4 |
| Voltage Rating | 4...32 VDC | Frequency Range | 45...65 Hz |
| Current - Output | 70 | Battery Pack Voltage | 42 V ac |
| Current Rating (Max) | 70 A rms | Voltage - Input (Min) | 32 V dc |
| Voltage - Supply (Min) | 4 V dc | Current - Off State (Max) | 3 mA rms |
| Current - Quiescent (Max) | 500 mA rms | ||
Mechanical
| Size | 103 x 90 x 81.7 mm | Depth | 98.6mm |
| Height | 81.7mm | Length | 90mm |
| Mounting Type | DIN Rail Panel Mount | Terminal Type | Screw |
Product Info
| Design | Screw assembly | Switch Type | Zero Crossing |
Environmental
| Operating Temperature | -30...+80 °C | ||
