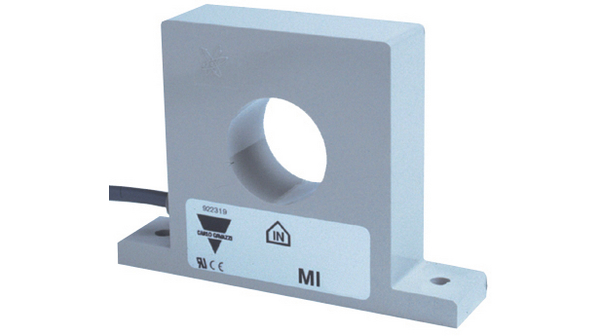

MI20
| Manufacturer | |
| Description | Carlo Gavazzi Current Transformer -20°C To +60°C 52 x 45 x 16mm, Current Transformer 6000VAC 20000mA Prim. 11Term. Wire Lead Flange Mount Transformer,1-PhraseChassisMountCTsforUsew/TypeSM115amplifier,maxamp:5 Current converter, MI20, Carlo Gavazzi Carlo Gavazzi 变流器 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Output | Relay | Accuracy | ±5% |
| Current Ratio | 2.0 A...20 A | Voltage - Secondary | 6 kV |
| Voltage - Switching DC | 4Vpk | ||
Mechanical
| Size | 52 x 16 x 45 mm | Width | 52mm |
| Height | 45 | Length | 52 |
| Bandwidth | 40...1000 Hz | Termination | Cable |
| Mounting Type | Screws | Depth - Overall | 16mm |
| Width - Overall | 52mm | Height - Overall | 45mm |
| Length - Overall | 16mm | Primary Material | Current |
| Working Dimensions | ø10.5 mm | Height - Seated (Max) | 45mm |
Product Info
| Type | Inductive | Function | Current |
| Technology | Inductive | Measuring Range | 20A |
Environmental
| Operating Temperature | -20°C | Maximum Temperature Limit | +60°C |
