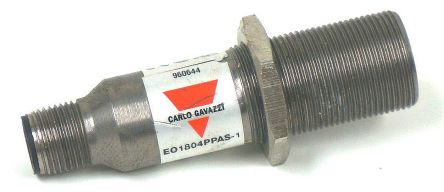

EO1804PPAS-1
| Manufacturer | |
| Description | Photo; Diffus; M18; 400MM PNP Photoelectric Sensor Diffuse-Reflective NO/NC PNP 0.4m 4-Pin Photo,Diffus,M18,400MMPNP Diffuse reflective sensor, EO1804PPAS-1, Carlo Gavazzi Carlo Gavazzi 为 400 mm LED 光源 圆柱状 漫射 光电传感器 , PNP 常开/常闭输出, 连接器, IP67 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Output | PNP | Output Type | PNP 常开/常闭 |
| Sensor Type | Diffuse reflective sensor | Light Source | LED |
| Load Current | 200 | Response Time | ≤3.2（接通）ms、≤5（关闭）ms |
| Current Rating (Max) | 20 mA | Voltage - Supply (Min) | 10...40 VDC |
| Voltage - DC Spark Over (Nom) | 40V | Voltage - Protection Level (VP) (2416) | IP 67 |
Mechanical
| Optic Material | 红外线 | Housing Material | Brass (CuZn) |
| Primary Material | Photoelectric | ||
Product Info
| Form | M18 | Type | Diffuse |
| Technology | Photoelectric | Sensing Method | Diffuse |
| Measuring Range | 400mm | Connection Method | Plug M12 |
Environmental
| Operating Range | 最长为 400 mm | Switching Cycles | 0...400 mm |
| Ingress Protection | IP67 | Operating Temperature | -20...+60 °C |
