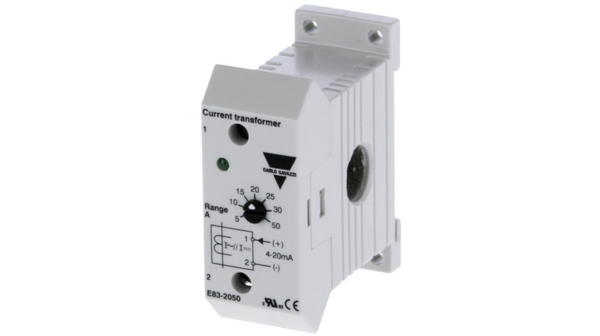

E83-2050
| Manufacturer | |
| Description | Current Transformer; Mini DIN Rail; 4-20mA Analog Output TRANSFORMER, CURRENT 4-20MA CurrentTransformer,MiniDINRail,4-20mAAnalogOutput Current transformer 0-50AAC, E83-2050, Carlo Gavazzi |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85364900 | ||
Electrical
| Output | Relay | Current | :4mA |
| Frequency - Max | :1kHz | Frequency - Min | :40Hz |
| Frequency Range | :40Hz to 1kHz | Current - Switching | 20mA |
| Current - Modulation | :0.5A, 0-10A, 0-25A. | Current Rating (Max) | :20mA |
| Current - Input Bias (Max) | :50A | DC Resistance (DCR) - Secondary | :1.5kohm |
| Turns Ratio - Primary:Secondary | :- | ||
Mechanical
| Depth | :49mm | Width | :22.5mm |
| Length | :56mm | Weight | 0.07 |
| Body Finish | Rectangular | Mounting Type | :DIN Rail |
| Mounting Style | DINRail | Primary Material | Current |
| Transformer Type | :Current | ||
Product Info
| Type | Inductive | Function | Current |
| Technology | Inductive | Measuring Range | 50A |
Environmental
| Ingress Protection | IP20 | Operating Temperature | :50°C |
