DUA52C724
| Manufacturer | |

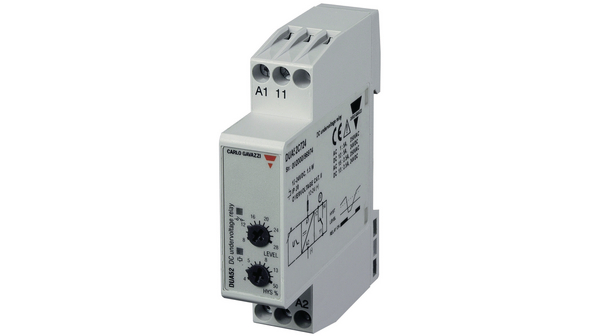

| Description | Electromechanical Relay SPDT 5A 12/24VDC DIN Rail RELAY, VOLTAGE MONITORING DCUNDERVOLTAGERELAY Voltage monitoring relay, DUA52C724, Carlo Gavazzi |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85364900 |
Electrical
| Hysteresis | :4 - 50% | Power - Rated | :1.5W |
| Voltage - Core | :250V | Voltage Rating | :48VDC |
| Number of Poles | :1 | Voltage - Supply | :24V |
| Dielectric Strength | :2000VAC | Voltage - Isolation | :250VAC |
| Current Rating (Max) | :5A | Current - Max/Contact | :5A |
| Voltage - Input (Max) | :24VDC | Voltage - Input (Min) | :12VDC |
| Power - Average Forward | :1.5W | Voltage - Supply (Vcc/Vdd) | :24V |
| Voltage - Continuous Operating (Max) (MCOV) | :24VDC | ||
Mechanical
| Depth | :67mm | Width | :17.5mm |
| Length | :81.5mm | Weight | 0.07529 |
| Mounting Type | :DIN Rail | Contact Layout, Typical | :SPDT |
Product Info
| Series | :DUA | Function | :Voltage Monitoring |
| Measuring Range | :8V DC to 28V DC, 38V DC to 58V DC | Control/Display Type | :DC |
Environmental
| Operating Temperature | :60°C | ||
