10208

Manufacturer	CARCLO-OPTICS

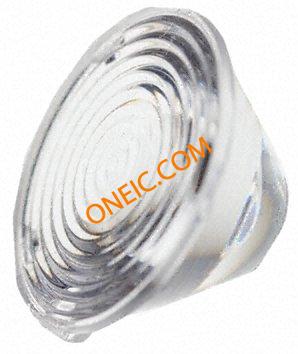

Description	Medium Circular 0.8mm Offset Focus 20mm Diameter Optic LENS TIR 20MM RIPPLE MEDIUM Luxeon Rebel 19 deg Circular Optic 20mm LED Lighting Lenses Optic, Ripple Med LENS, WIDE, REBEL LENS,10208 Carclo 19 ° LED 透镜 , 20mm直径, 使用于Lumileds LUXEON Rebel
Category	Cables, Wires, and ComponentsD-Sub CablesDelta D-Sub Cables

对参数有疑问？问 AI 助手

Business

Other Names	1066-1025	Standard Package	48
Factory Pack Quantity	48

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
EU RoHS	Supplier Unconfirmed	Tariff No	85419000

Electrical

Beam Angle

:21°

Optical Pattern

Medium

Mechanical

Color	Clear	Shape	Round
Height	9.9 mm	Weight	0.0005
Diameter	20 mm	Packaging	Tray
Lens Color	:(Not Available)	Lens Style	:Round
Lens Diameter	:20mm	Lens Material	:Polycarbonate (PC)
Mounting Type	Snap-In	Lens Style/Size	Round with Ripple Top, 20mm

Product Info

Type	Lens Only - Holder Required (TIR)	Style	Diffused
Lens Type	:Lens with Holder	Accessory Type	:Multi-LED Lens
Number of LEDs	1	Other Specifications	:Wide
For Use With/Related Products	Lumileds™ Luxeon® Rebel, Cree XP-E, MC-E

Documents & Media

PDF Document

85168.pdf
