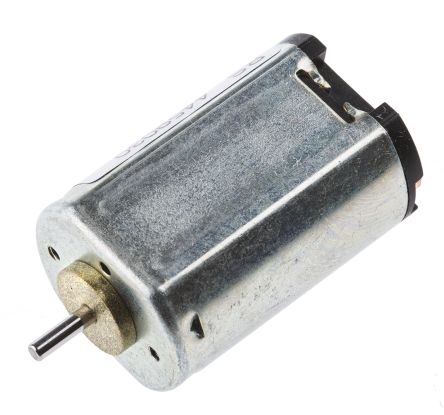

DN22M-24
| Manufacturer | |
| Description | DN22 DC motor,6800rpm 24V 1.4W 22mm dia 22MMMOTOR24VDCDN Canon 电刷 直流电动机 , 24 V 直流电源, 100 mA, 2.45 mNm, 5320 rpm, 2mm 轴直径 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Speed | 5320 rpm | Core Type | Iron Core |
| Power - Rated | 1.4 W | Speed - Write | 5320 rpm |
| Voltage - Supply | 24 V dc | Current Rating (Max) | 100 mA |
| Power - Output Surge | 2.45 mNm | ||
Mechanical
| Depth | 18mm | Width | 22mm |
| Length | 32.8mm | Motor Type | Brushed |
| Shaft Diameter | 2mm | Diameter - Shaft | 2mm |
| Size / Dimension | 32.8 x 22 x 18 mm | Torque - Max Momentary (oz-in / mNm) | 2.45 mNm |
Product Info
| Other Specifications | 电刷 | ||
