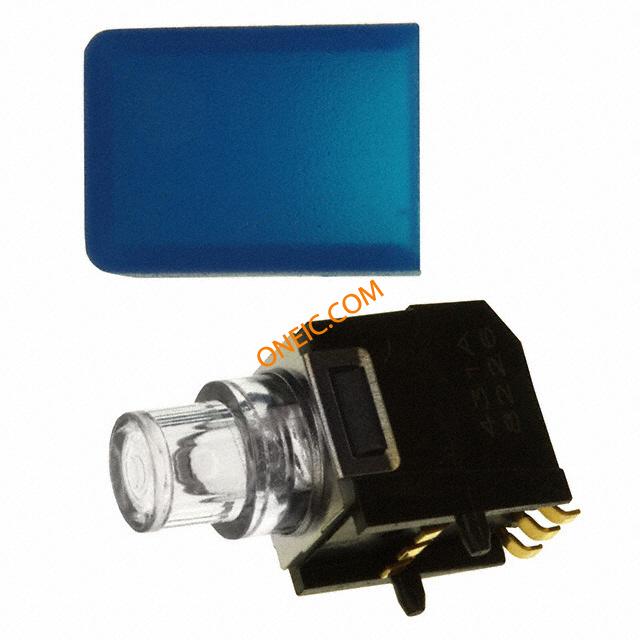

K5V1WH43G
| Manufacturer | |
| Description | Tactile Switches Spdt 400Gf Wh Ra Smd SWITCH TACTILE SPDT 0.1A 32V |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 401-1855-2 | Part # Aliases | Y71243111FP |
| Standard Package | 330 | Factory Pack Quantity | 330 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPDT | Power - Rated | 1 VA |
| Voltage Rating | 32 V | Switch Function | On-Mom |
| Current Rating (Max) | 100 mA | Contact Rating @ Voltage | 0.1A @ 32VDC |
Mechanical
| Outline | 9.45mm x 8.00mm | Packaging | Tape & Reel (TR) |
| Contact Form | SPST | Actuator Type | Translucent |
| Mounting Type | Surface Mount, Right Angle | Switch Travel | 1.20mm |
| Contact Finish | Silver | Mounting Style | SMD/SMT |
| Operating Force | 400gf | Termination Style | Gull Wing |
| Illumination Color | White | Actuator Orientation | Side Actuated |
| Illumination Type, Color | LED, White | Actuator Height off PCB, Vertical | 12.40mm |
Product Info
| Series | K5V | Features | Tactile Feedback |
| Illumination | Illuminated | ||
Environmental
| Mechanical Life | 25,000 Cycles | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 85°C | ||
