K5V1BU43T
| Manufacturer | |
| Description | Tactile Switches SPST 4.5N THRGH HL Switch Tactile N.O./N.C. SPST/SPDT Round Button PC Pins 0.1A 30VDC 1VA 25000Cycles 4N Thru-Hole Tray SWITCH TACTILE SPDT 0.1A 32V Switch Tactile N.O./N.C. SPST/SPDT Round Button PC Pins 0.1A 30VDC 1VA 25000Cycle 4N Thru-Hole Tray SWITCH, R/A, SPDT, BLUE PCB Switch without snap-in 0.02 VDC ...32 VDC 0.1 ...100 mA LED blue, K5V1BU43T, C&K |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | Y71243231FP | Product Category | Tactile Switches |
| Standard Package | 60 | Factory Pack Quantity | 60 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85365007 |
| Material Flammability Rating | :UL94 HB | ||
Electrical
| Circuit | SPDT | Power - Rated | 1 VA |
| Voltage - Core | :-00V | Voltage Rating | 32 V |
| Switch Function | On-Mom | Current - Switching | :0.1mA |
| Current Rating (Max) | 100 mA | Current - Max/Contact | :100mA |
| Switch Function/Rating | N.O./N.C. | Voltage - Supply (Min) | :20mV |
| Contact Rating @ Voltage | 0.1A @ 32VDC | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :32V | Current - DC Forward (If) (Max) | :100mA |
Mechanical
| Depth | :10.1mm | Width | :8mm |
| Height | 9.1 | Length | :9.45mm |
| Weight | 0.0044 | Outline | 9.45mm x 8.00mm |
| Material | :Thermoplastic | LED Color | :Bleu |
| Packaging | Tray | Contact Form | SPST |
| Actuator Type | Translucent | Mounting Type | Through Hole |
| Switch Travel | 1.20mm | Terminal Type | PC Pins |
| Actuator Color | Translucid | Connector Type | No |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Actuator Length | 4 | Operating Force | 400gf |
| Contact Material | Gold/Nickel | Length - Overall | 8 |
| Termination Style | PC Pin | Color - Connectors | :Translucid |
| Illumination Color | Blue | Actuator Style/Size | Round Button |
| Number of Positions | :25000 | Actuator Orientation | Side Actuated |
| Color - Actuator/Cap | :Transparent | Height - Seated (Max) | 5.15 mm |
| Switch Actuation Level | SPST|SPDT | Contact Layout, Typical | :SPDT |
| Illumination Type, Color | LED, Blue | Material - Housing & Prism | N/A/Thermoplastic |
| Actuator Height off PCB, Vertical | 12.40mm | ||
Product Info
| Series | K5V | Features | Tactile Feedback |
| Illumination | Illuminated | ||
Environmental
| Mechanical Life | 25,000 Cycles | Switching Cycles | :25000 |
| Ingress Protection | IP40 | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
550-1007F
Dialight
LED Circuit Board Indicators 5MM CBI RT ANGLE B LED Uni-Color Blue 2-Pin T-1 3/4 Bag LED 5MM R/A BLUE WATER CLEAR LED, PCB, 5MM, BLUE
$9.7716
Details

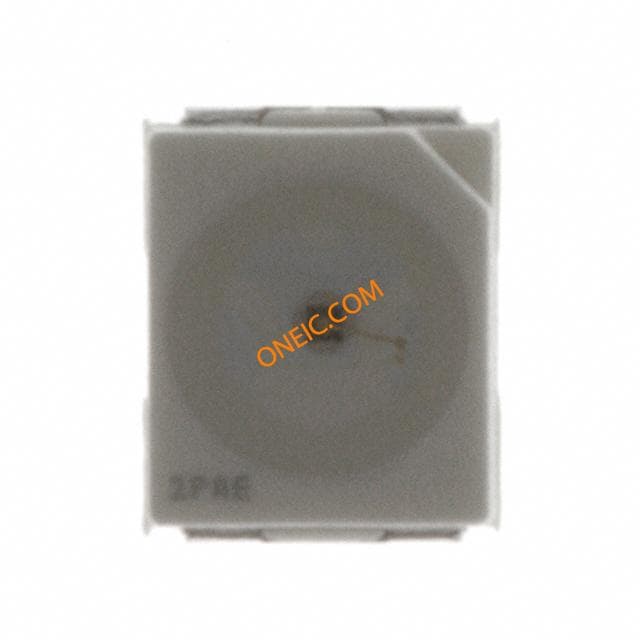

597-3601-207F
