TP11SH9ABE
| Manufacturer | |
| Description | Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Pushbutton ON-MOM THT angled SWITCH PUSH SPST-NO 0.4VA 20V Pushbutton Switches OFF-MOM SPST RA PC SWITCH, SPST, 0.4VA, 20VAC/DC, THT, R/A Switch,Pushbutton,TINY,PCTerminal/RIGHTANGLEMOUNT.,SPST,OFF-MOM. C&K SWITCH C & K 单刀单掷 通孔 Off-(On) 按钮开关, 0.4 A@ 20 V |
| Category |
Business
| MOQ | 50 | Lead Time | 98 Days |
| Unit Pack | 1 | Subcategory | Switch Push Button |
| Product Category | Pushbutton Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85365011 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Circuit | SPST-NO | Power - Rated | 0.4@20VAC 20VDC VA |
| Voltage Rating | 20 V | Switch Function | OFF-MOM |
| Voltage - Supply | 20 DCV | Voltage - Rated AC | 20V |
| Current Rating (Max) | 0.4VA (AC/DC) | Number of Capacitors | NoY/N |
| Current - Max/Contact | 20mA | Voltage - Input (Min) | 20 |
| Switch Function/Rating | OFF Mom | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :20V | Voltage - DC Spark Over (Nom) | 20V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :20V | ||
Mechanical
| Pitch | 2.5mm | Height | 6.1 mm |
| Weight | 0.045 | Plating | Au |
| Packaging | Bulk | Termination | THT |
| Weight (g): | 1.60000 | Contact Form | SPST |
| Contact Type | SPST | Actuator Type | Round, Plunger |
| Mounting Type | Through Hole | Terminal Type | PC Pins |
| Contact Finish | Gold/Nickel | Mounting Style | Through Hole |
| Contact Material | Copper Alloy | Housing Material | Stainless Steel |
| Length - Overall | H18,2mm | Size / Dimension | 8,1x5,1mm |
| Actuator Diameter | 3.5mm | Actuator Material | Thermoplastic Polyester |
| Termination Style | PC Pin | Actuator Style/Size | Round Plunger |
| Color - Actuator/Cap | Black | Switch Actuation Level | SPST |
| Contact Layout, Typical | :SPST | Illumination Type, Color | Not Required |
| Material - Housing & Prism | N/A/Stainless Steel | ||
Product Info
| Type | Standard | Series | TP |
| Features | Epoxy Sealed Terminals | Function | Momentary Contact |
| Matchcode | TP11SH9ABE ** | Illumination | NoY/N |
| Electrical Life | 60000cycles | Firmware Version | ROUND |
| Industry Aliases | TP11-SH9-A-B-E | Standard Leadtime | 16 weeks |
| Base Product Number | Rightangle | ||
Environmental
| Seal Rating | Epoxy | Ingress Protection | IP40 |
| Operating Temperature | -30 to 85 °C | Operating Temperature - Junction | 85C |
Similar Parts
508102000
c&k components
Switch Access Push Button Switch Round Cap Hardware CAP PUSHBUTTON ROUND BLACK Switch Accessories BLK PUSHBUTTON CAP CAP, ROUND, BLACK, 5.08X3.94, FOR ET/EP C & K 黑色 按钮帽 , 使用于EP 系列（密封微型按钮开关）
465802000
c&k components
Switch Access Push Button Switch Round Cap Switch Accessories PB SWCH CAP BLK Hardware CAP PUSHBUTTON ROUND BLACK Push Button Cap For Use With EP Series (Sealed Tiny Push Button Switch) CAP, ROUND, BLACK, 7.87X3.86, FOR ET/EP Cap;Black;Polycarbonate;0.1in.;EP&TPSeries;PanelMount;0.152in. C&K LARGE CAP
708902000
c&k components
Switch Access Push Button Switch Round Cap Hardware CAP PUSHBUTTON ROUND BLACK Black Push Button Cap For Use With E020 Series (Sealed Snap-Acting Momentary Push Button Switch) Switch Accessories BLACK NYLON CAP CAP, ROUND, BLACK, 5.08X3.94MM, FOR 8020 Switch,Pushbutton Cap; black C & K 黑色 按钮帽 , 使用于E020 系列（密封咬接式瞬时型按钮开关）
U1654
Bosch Rexroth AG

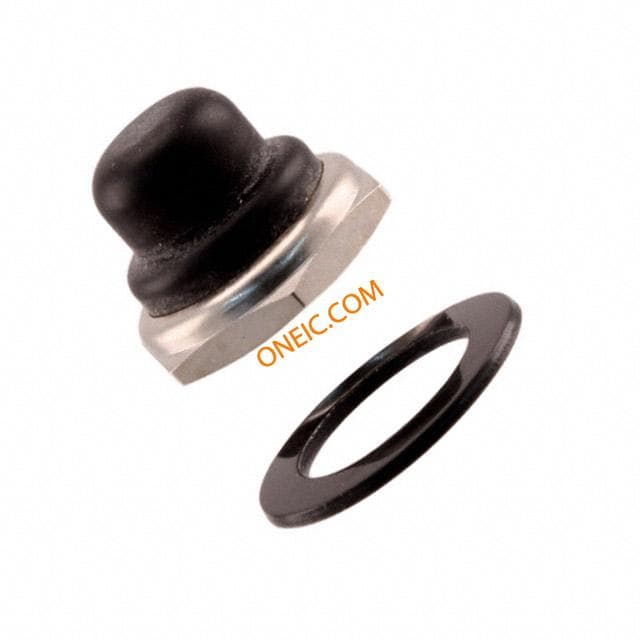

BOOTSEAL 12MM BLACK HEX Switch Access Push Button Switch Silicone Boot
U590
Bosch Rexroth AG

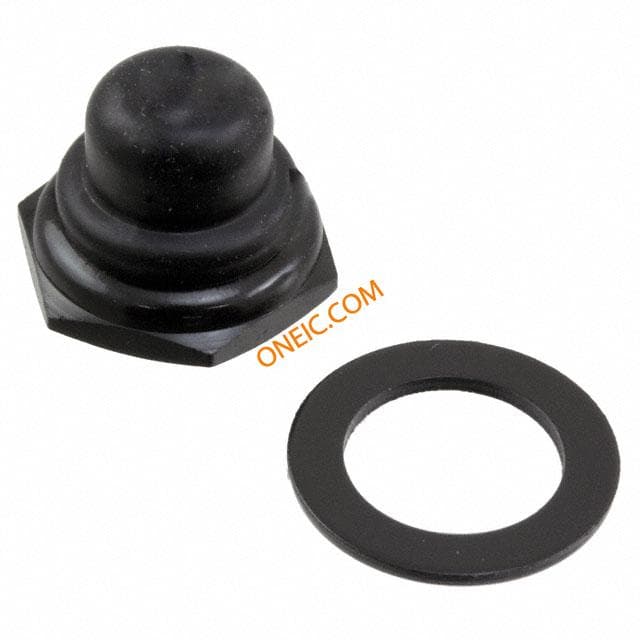

SEALING BOOT FOR SWITCH SEALING BOOT BLK HEX MATT Switch Access Push Button Switch Silicone Boot
U1654
APEM

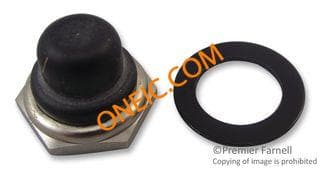

Switch Accessories BLK BOOT W/BLK NUT SEALING BOOT, 1200 SERIES, BLACK WATERPROOF SWITCH SEALING BOOT
