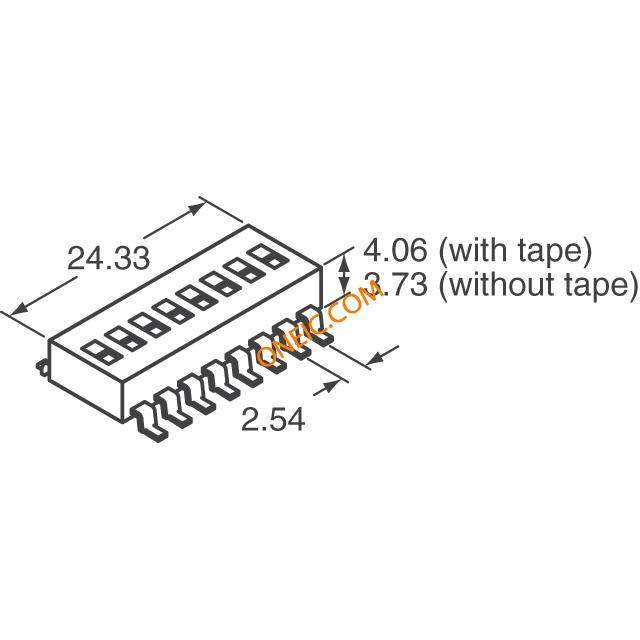

SD09H0SB
| Manufacturer | |
| Description | Switch DIP OFF ON SPST 9 Flush Slide 0.1A 25VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD Tube Switch DIP OFF ON SPST 9 Flush Slide 0.1A 25VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD Tube DIP / Rotary DIP SWITCH DIP TAPE SEALED 9POS 25V DIP Switches / SIP Switches DIP / Rotary DIP 9 POS SPST 100mA |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 200 | Unit Pack | 20 |
| Product Category | DIP Switches / SIP Switches | Standard Package | Rail / Tube |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPST | Voltage Rating | 25 V |
| Current Rating (Max) | 0.1@25VDC A | Switch Function/Rating | OFF ON |
| Contact Rating @ Voltage | 0.1A @ 25VDC | ||
Mechanical
| Seal | Tape(Polyimide)/Molded-In | Depth | 9.91 |
| Height | 4.31 | Packaging | Tube |
| Orientation | Top Actuated | Contact Form | SPST |
| Pitch - Post | 2.54 mm | Actuator Type | Standard |
| Mounting Type | Surface Mount | Terminal Type | Gull Wing |
| Actuator Level | Flush | Contact Finish | Gold |
| Contact Material | Beryllium Copper | Length - Overall | 24.33 |
| Termination Style | SMD/SMT | Actuator Style/Size | Flush Slide |
| Number of Positions | 9 | Switch Actuation Level | SPST |
Product Info
| Series | SD | Washable | Yes |
| Switch Type | DIP | Electrical Life | 2000/Switch |
Environmental
| Mechanical Life | 2000/Switch | Operating Temperature | -40 to 85 °C |
