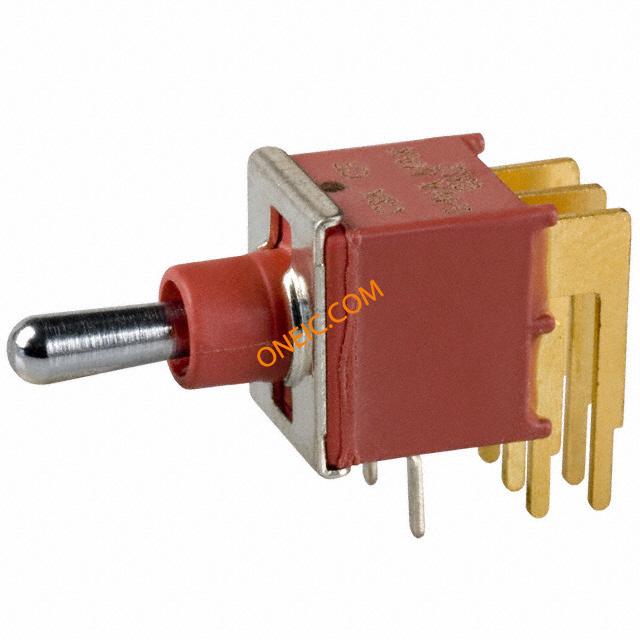

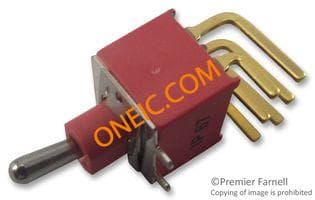

ET21MD1ABE
| Manufacturer | |
| Description | Switch Toggle ON None ON DPDT Round Toggle PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket Toggle SWITCH TOGGLE DPDT 0.4VA 20V Toggle Switches Toggle DPDT R/A PCB ON-ON SWITCH, DPDT, R/A, PCB, ON-ON SWITCH,TOGGLE,DPDT,ON-ON,R/A,PCB, |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Lead Time | 56 Days |
| Unit Pack | 1 | Subcategory | Switch Toggle |
| Product Category | Toggle Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85365007 |
| Material Flammability Rating | :UL 94V-0 | ||
Electrical
| Circuit | DPDT | Power - Max | :0.4VA |
| Power - Rated | 0.4@20VAC 20VDC VA | Voltage - Core | :20VAC |
| Voltage Rating | 20 V | Switch Function | On-On |
| Contact Resistance | :20mohm | Voltage - Rated AC | 20V |
| Dielectric Strength | :1000V | Current Rating (Max) | 0.4VA (AC/DC) |
| Insulation Resistance | :1000Mohm | Voltage - Input (Min) | 20 |
| Switch Function/Rating | ON None ON | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :20V | Voltage - DC Spark Over (Nom) | 20V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :20V | ||
Mechanical
| Depth | :9.27mm | Width | :8.13mm |
| Height | 10.29 mm | Length | :10.29mm |
| Weight | 0.0044 | Material | :Glass Filled Nylon |
| Packaging | Bulk | Tab Width | :0.51mm |
| Termination | :Through Hole | Contact Form | DPDT |
| Actuator Type | Standard Round | Mounting Type | PC Mount with Bracket |
| Terminal Type | PC Pins | Bushing Thread | Unthreaded |
| Contact Finish | Gold/Nickel | Mounting Style | Through Hole |
| Shaft Diameter | :2.54mm | Actuator Length | 6.10mm |
| Contact Material | Copper Alloy | Length - Overall | 8.13 mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | PC Pin |
| Actuator Style/Size | Round Toggle | Number of Positions | :30000 |
| Diameter - Barrel ID | :4.57mm | Switch Actuation Level | DPDT |
| Contact Layout, Typical | :DPDT | 1st Connector Mounting Type | :Through Hole |
Product Info
| Type | Sealed Sub-Miniature | Series | ET |
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 60,000 Cycles | ||
Environmental
| Seal Rating | Sealed | NEMA Frame Size | :IP57 |
| Switching Cycles | :30000 | Ingress Protection | IP57 - Dust Protected, Waterproof |
| Operating Temperature | -30 to 85 °C | Operating Temperature - Junction | 85C |
