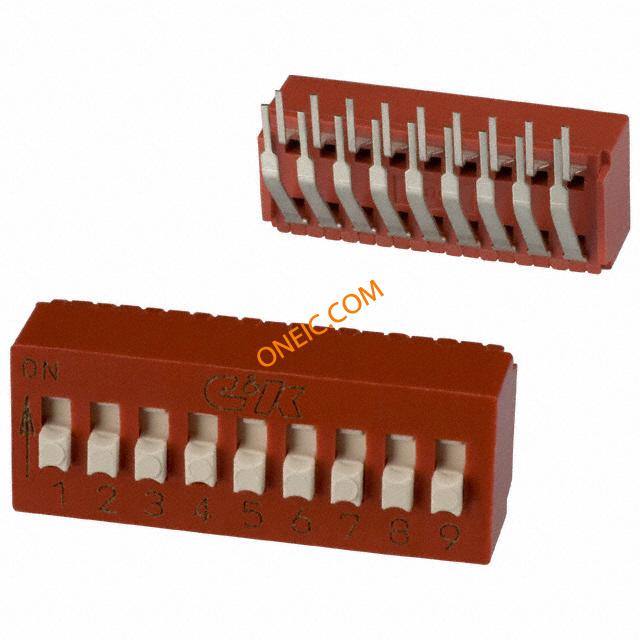

BD09AV
| Manufacturer | |
| Description | Switch DIP OFF ON SPST 9 Extended Slide 0.1A 25VDC PC Pins 10000Cycle/SwitchCycle 2.54mm Thru-Hole Tube DIP Switches / SIP Switches R/A STD PRO 9 POS Switch DIP OFF ON SPST 9 Extended Slide 0.1A 25VDC PC Pins 10000Cycles/SwitchCycles 2.54mm Thru-Hole Tube DIP / Rotary DIP SWITCH DIP R/A SLIDE 9POS 5V |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 200 | Unit Pack | 20 |
| Product Category | DIP Switches / SIP Switches | Standard Package | Rail / Tube |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPST | Voltage Rating | 25 V |
| Current Rating (Max) | 0.1@5VDC A | Switch Function/Rating | OFF ON |
| Contact Rating @ Voltage | 100 mA | ||
Mechanical
| Seal | Tape | Depth | 11.69 |
| Height | 9.65 | Packaging | Tube |
| Orientation | Side Actuated | Contact Form | SPST |
| Pitch - Post | 2.54 mm | Actuator Type | Extended |
| Mounting Type | Through Hole | Terminal Type | PC Pins |
| Actuator Level | Raised | Contact Finish | Palladium Silver |
| Package / Case | DIP | Contact Material | Palladium Silver |

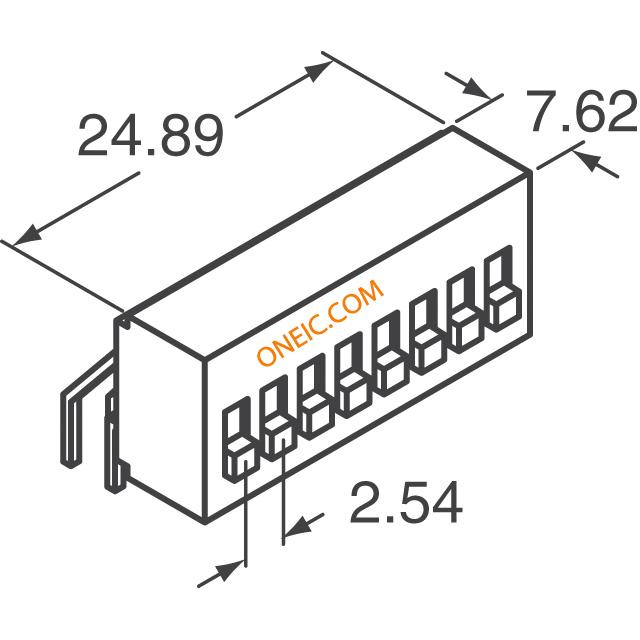

| Length - Overall | 24.89 | Termination Style | PCB |
| Actuator Style/Size | Extended Slide | Number of Positions | 9 |
| Switch Actuation Level | SPST | ||
Product Info
| Series | BD | Washable | Yes |
| Switch Type | DIP | Electrical Life | 10000/Switch |
Environmental
| Mechanical Life | 10000/Switch | Operating Temperature | -40 to 85 °C |
