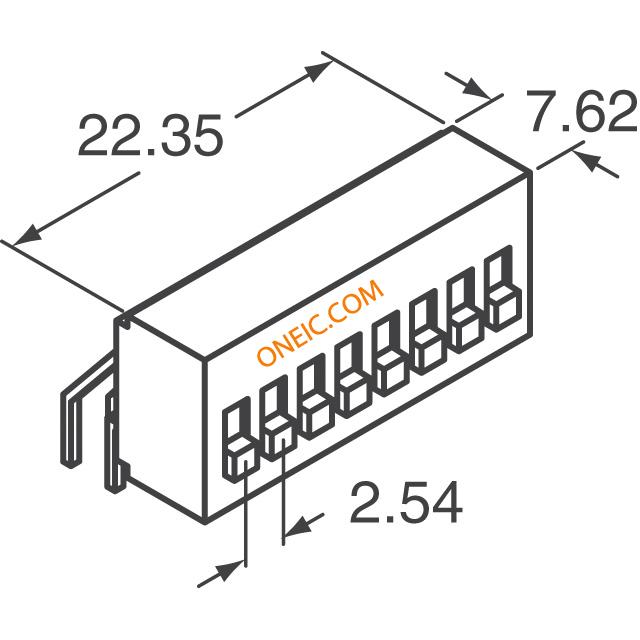

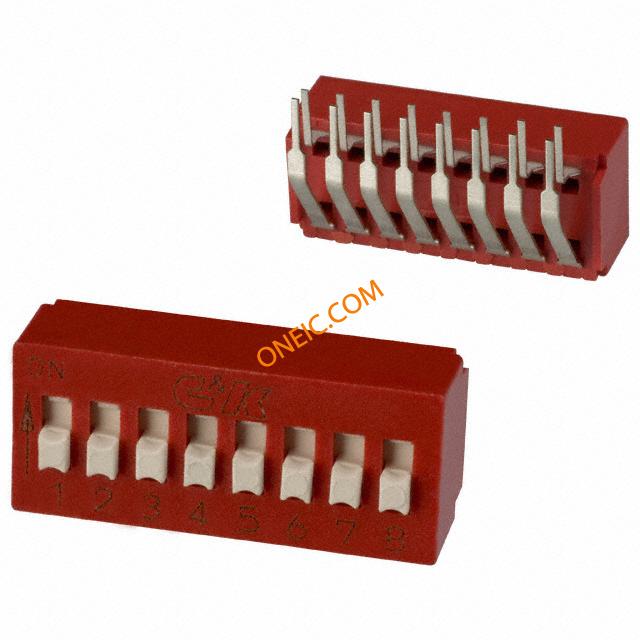

BD08AV
| Manufacturer | |
| Description | Switch DIP OFF ON SPST 8 Extended Slide 0.1A 25VDC PC Pins 10000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Switch DIP OFF ON SPST 8 Extended Slide 0.1A 25VDC PC Pins 10000Cycles/SwitchCycles 2.54mm Thru-Hole Tube DIP 8P THT raised rightangle SWITCH DIP R/A SLIDE 8POS 5V DIP Switch SPST PCB Slide, 0.1 A @ 5 V dc, 8-Way, -40 to +85°C DIP Switches / SIP Switches R/A STD PRO 8 POS SWITCH, 8 WAY, SPST, THT DIPSWITCH C&K DIP SWITCH |
| Category |
Business
| MOQ | 23 | Lead Time | 84 Days |
| Unit Pack | 23 | Subcategory | Switch DIP |
| Product Category | DIP Switches / SIP Switches | Standard Package | Rail / Tube |
| Factory Pack Quantity | 23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85365011 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Circuit | SPST | Voltage Rating | 25 V |
| Switch Function | OFF ON | Voltage - Supply | 25 DCV |
| Current Rating (Max) | 0.1@5VDC A | Current - Max/Contact | :100mA |
| Switch Function/Rating | OFF ON | Contact Rating (Current) | 0.1 A @ 5 V dc |
| Contact Rating @ Voltage | 0.1A @ 5VDC | Voltage - DC Reverse (Vr) (Max) | 25V |
| Current - Peak Pulse (10/1000us) | 25mA | ||
Mechanical
| Seal | Tape | Depth | 11.69 mm |
| Pitch | 2.5mm | Width | 7.6mm |
| Height | 9.7mm | Length | 22.4mm |
| Weight | 0.045 | Plating | Au |
| Packaging | Tube | Orientation | Side Actuated |
| Termination | THT | Weight (g): | 2.00000 |
| Contact Form | SPST | Pitch - Post | 2.54 mm |
| Actuator Type | RAISED | Mounting Type | Through Hole |
| Terminal Type | PC Pins | Actuator Level | Raised |
| Connector Type | NoY/N | Contact Finish | Palladium Silver |
| Mounting Style | Through Hole | Package / Case | DIP |
| Contact Material | Gold/Nickel/Phosphor Bronze | Length - Overall | 22.35 mm |
| Termination Style | PCB | Actuator Style/Size | Extended Slide |
| Number of Positions | 8 | Switch Actuation Level | SPST |
| Contact Layout, Typical | SPST | 1st Connector Mounting Type | :Through Hole |
Product Info
| Series | BD | DELETED | Compliant |
| Washable | Yes | Matchcode | BD08AV ** |
| Switch Type | DIP | Tape Included | NoY/N |
| Electrical Life | 10000cycles | Industry Aliases | BD08AV |
| Standard Leadtime | 7 weeks | Number of Positions (Convert From) | 8 |
Environmental
| Mechanical Life | 10000Operations | Operating Temperature | -40 to 85 °C |
Documents & Media
Similar Parts

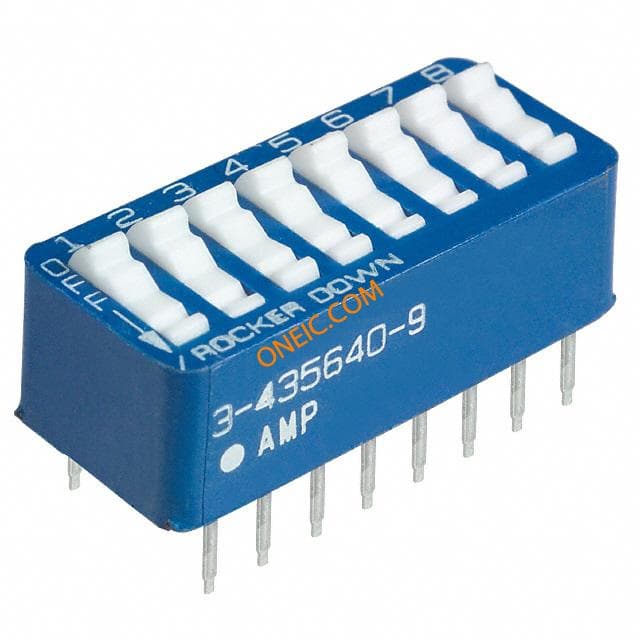

3-5435640-9
te connectivity / amp
Switch DIP OFF ON SPST 8 Raised Rocker PC Pins 2.54mm Thru-Hole DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard SWITCH DIP 8POS SEALED GOLD 5V DIP Switch SPST PCB Rocker, 0.1 A @ 5 V dc, 8-Way, -55 to +105°C DIP Switches / SIP Switches SPST 8POS RCKR SLD Switch DIP OFF ON SPST 8 Raised Rocker PC Pins 2.54mm Thru-Hole Product Highlights:DIP SwitchPCB Mount Style = Through HoleSingle Pole - Single Throw Configuration (Pole-Throw)Actuator Style = Rocker (Top Actuated)SealedSearch Keywords:PCB Switches and Knobs, NIC, Network Interface Cards, PC Cards, Lighting Interconnection Products, Dual In-Line Package, Switch,DIP,8Position,Rocker,SPST,Sealed Alcoswitch DIP Switch Actuator Style: Rocker (Top Actuated) Mounting Style: Thru Hole Number of Positions: 8 Configuration: Single Pole - Single Throw Sealed: Yes DIP SW 8 POSN SEALED

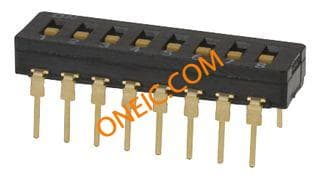

A6D8103
omron electronics
Switch DIP ON OFF SPST 8 Raised Slide 0.1A 30VDC PC Pins 5000Cycle 2.54mm Thru-Hole Tube DIP Switch 8P PCB Slide, 0.1 A @ 5 V dc, 8-Way, -20 to +70°C SWITCH, DIP, RAISED ACTUATOR, 8 WAY

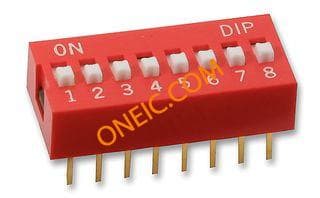

MCNDS-08-V
