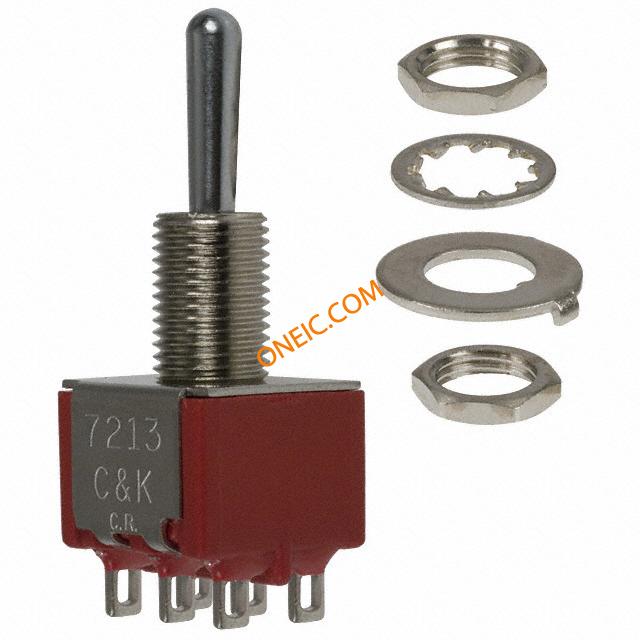

7213SYZQE
| Manufacturer | |
| Description | Switch Toggle ON ON Mom DPDT Round Toggle Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Toggle SWITCH TOGGLE DPDT 5A 120V Toggle Switches ON-ON-MOM DPDT SLDR Switch,ROUNDToggle,PANEL-MNTED,DPDT,ON-ON-MOM.,5A@120VACOR28VDC |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Lead Time | 56 Days |
| Unit Pack | 1 | Subcategory | Switch Toggle |
| Product Category | Toggle Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | DPDT | Operation | OnOn(On) |
| Voltage Rating | 28 V | Number of Poles | 2 |
| Switch Function | On-On-Mom | Contact Resistance | 10Milliohms(Max.) |
| Dielectric Strength | 1000V | Current Rating (Max) | 5@120VAC 28VDC A |
| Insulation Resistance | 10^9Ohms(Min.) | Voltage - Input (Min) | 250 V |
| Switch Function/Rating | ON ON Mom | ||
Mechanical
| Depth | 11.43 | Height | 32.39 |
| Packaging | Bulk | Body Finish | Miniature |
| Termination | SolderLugs | Weight (g): | 6.00000 |
| Contact Form | DPDT | Actuator Type | Standard Round |
| Mounting Type | Panel Mount with Threads | Terminal Type | Solder Lug |
| Bushing Thread | 1/4-40 | Contact Finish | Silver |
| Mounting Style | Panel | Actuator Length | 10.67mm |
| Material - Body | GlassFilledNylon | Contact Material | Coin Silver |
| Length - Overall | 12.7 | Actuator Material | Brass, Chrome Plated |
| Termination Style | Solder Lug | Actuator Style/Size | Round Toggle |
| Number of Positions | 3 | Bushing, Grommet Type | 1/4-40 |
| Switch Actuation Level | DPDT | Panel Cutout Dimensions | Circular - 6.35mm Dia |
| Material - Housing & Prism | N/A/Stainless Steel | ||
Product Info
| Type | Miniature | Series | 7000 |
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 40,000 Cycles | Application Specifics | Telecommunications,instrumentation,medicalequipment |
Environmental
| Seal Rating | Sealed | Operating Temperature | -30 to 85 °C |
| Operating Temperature - Junction | +85°C | ||
