7205P3DV3QE
| Manufacturer | |
| Description | Switch Toggle Mom OFF Mom DPDT Flat Lever PC Pins 5A 250VAC 28VDC PC Mount with Bracket and Threads Toggle SWITCH TOGGLE DPDT 5A 120V Toggle Switches Mom OFF Mom DPDT 5A 250VAC 28VDC |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Unit Pack | 1 |
| Product Category | Toggle Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | DPDT | Voltage Rating | 28 V |
| Switch Function | Mom-Off-Mom | Current Rating (Max) | 5@120VAC 28VDC A |
| Voltage - Input (Min) | 250 V | Switch Function/Rating | Mom OFF Mom |
Mechanical
| Depth | 11.43 | Height | 32 |
| Packaging | Bulk | Contact Form | DPDT |
| Actuator Type | Flat Anti-Rotation | Mounting Type | PC Mount with Bracket and Threads |

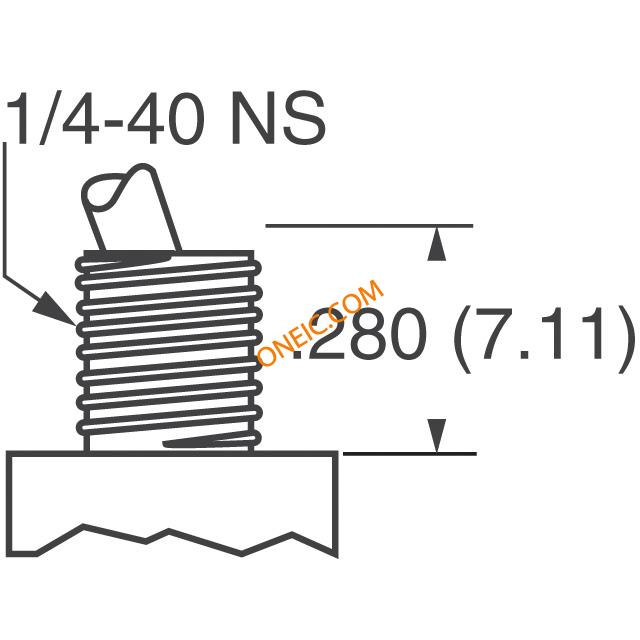

| Terminal Type | PC Pins | Bushing Thread | 1/4-40 |
| Contact Finish | Silver | Mounting Style | Through Hole |

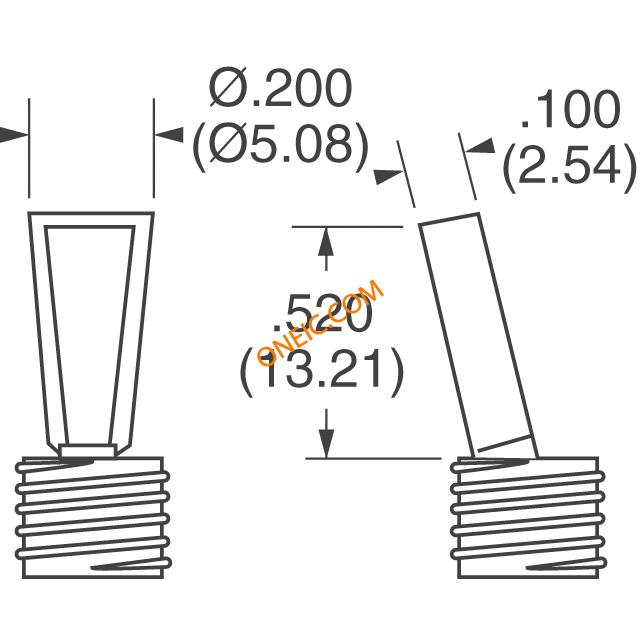

| Actuator Length | 13.21mm | Contact Material | Coin Silver |
| Length - Overall | 16.26 | Actuator Material | Brass, Chrome Plated |
| Termination Style | PC Pin | Actuator Style/Size | Flat Lever |
| Bushing, Grommet Type | 1/4-40 | Switch Actuation Level | DPDT |
| Panel Cutout Dimensions | Circular - 6.35mm Dia | Material - Housing & Prism | N/A/Stainless Steel |
Product Info
| Type | Miniature | Series | 7000 |
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 40,000 Cycles | ||
Environmental
| Seal Rating | Sealed | Operating Temperature | -30 to 85 °C |
