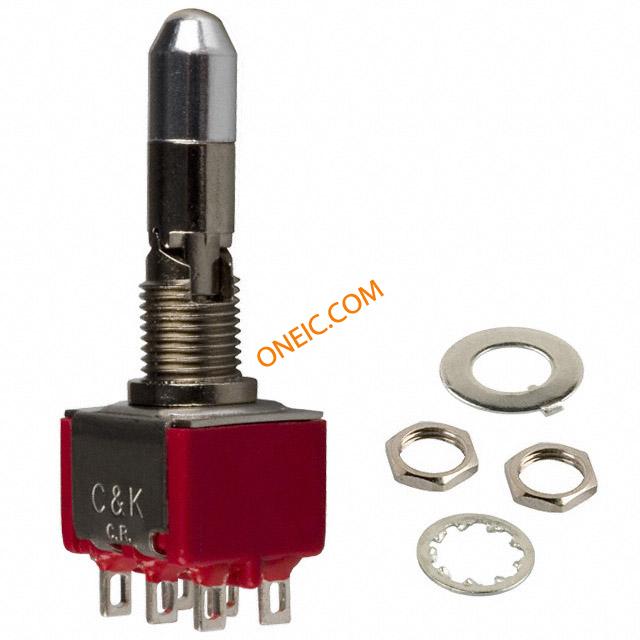

7201K2CWZQE
| Manufacturer | |
| Description | Switch Toggle ON None ON DPDT Locking Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Toggle SWITCH TOGGLE DPDT 5A 120V Toggle Switches DP ON-NONE-ON |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Lead Time | 49 Days |
| Unit Pack | 1 | Subcategory | Switch Toggle |
| Product Category | Toggle Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | DPDT | Voltage Rating | 28 V |
| Switch Function | On-On | Voltage - Rated AC | 250V VAC |
| Current Rating (Max) | 5@120VAC 28VDC A | Voltage - Input (Min) | 250 V |
| Switch Function/Rating | ON None ON | Voltage - DC Spark Over (Nom) | 28V VDC |
Mechanical
| Depth | 11.81 mm | Height | 40.21 mm |
| Packaging | Bulk | Weight (g): | 9.28000 |
| Contact Form | DPDT | Actuator Type | Locking Lever |
| Mounting Type | Panel Mount with Threads | Terminal Type | Solder Lug |
| Bushing Thread | 1/4-40 | Contact Finish | Silver |
| Mounting Style | Panel | Actuator Length | 17.88mm |
| Contact Material | Coin Silver | Housing Material | N/A/Stainless Steel |
| Length - Overall | 12.7 mm | Actuator Material | Aluminum |
| Termination Style | Solder Lug | Actuator Style/Size | Locking Lever |
| Bushing, Grommet Type | 15/32-32 | Switch Actuation Level | DPDT |
| Panel Cutout Dimensions | Circular - 6.35mm Dia | Material - Housing & Prism | N/A/Stainless Steel |
Product Info
| Type | Miniature | Series | 7000 |
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Seal Rating | Sealed | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -30 to 85 °C | Operating Temperature - Junction | 85C |
