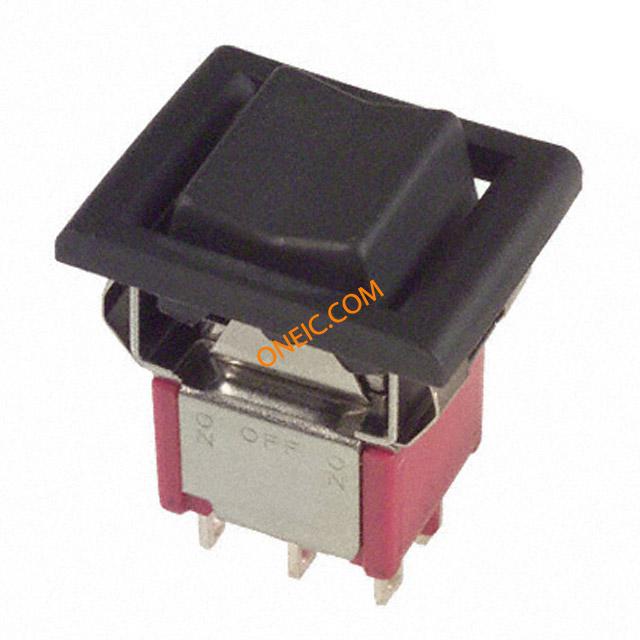

7201J16ZQE22
| Manufacturer | |
| Description | Switch Rocker ON None ON DPDT Solder Lug Rocker 5A 250VAC 28VDC Rocker SWITCH ROCKER DPDT 5A 120V Rocker Switches DP ON-ON SLDR LUG |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Lead Time | 49 Days |
| Unit Pack | 1 | Subcategory | Switch Rocker |
| Product Category | Rocker Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | DPDT | Voltage Rating | 28 V |
| Switch Function | On-On | Current Rating (Max) | 5@120VAC 28VDC A |
| Voltage - Input (Min) | 250 V | Switch Function/Rating | ON None ON |
| Contact Rating @ Voltage | 5 A at 120 V | ||
Mechanical
| Depth | 15.62 | Height | 26.63 |
| Packaging | Bulk | Contact Form | DPDT |
| Actuator Type | Rocker | Mounting Type | Panel Mount |
| Terminal Type | Solder Lug | Contact Finish | Silver |
| Mounting Style | Through Hole | Contact Material | Coin Silver |
| Length - Overall | 25.04 | Actuator Material | Nylon |
| Termination Style | Solder Lug | Actuator Style/Size | Rocker |
| Color - Actuator/Cap | Black | Switch Actuation Level | DPDT |
| Panel Cutout Dimensions | Rectangular - 20.32mm x 12.70mm | Material - Housing & Prism | N/A/Stainless Steel |
Product Info
| Series | 7000 | Features | Epoxy Sealed Terminals |
| Electrical Life | 100,000 Cycles | Actuator Marking | No Marking |
Environmental
| Seal Rating | Epoxy | Operating Temperature | -30 to 85 °C |
