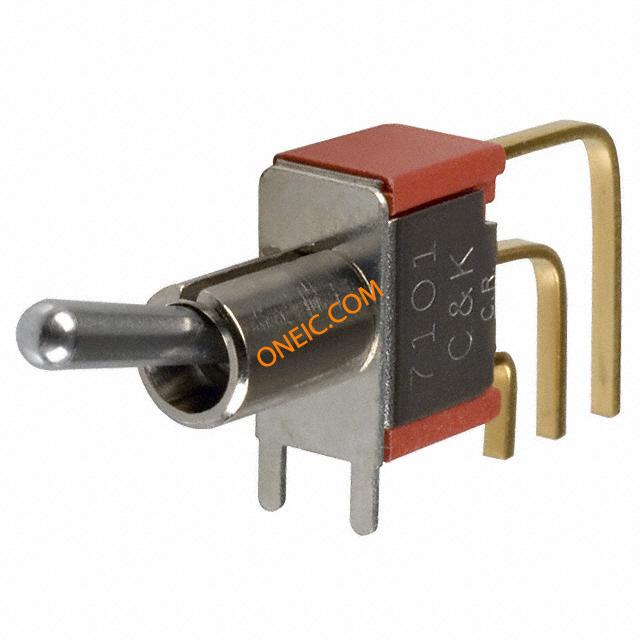

7101SY9AV2BE
| Manufacturer | |
| Description | Switch Toggle ON None ON SPDT Round Toggle PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket Toggle SWITCH TOGGLE SPDT 0.4VA 20V Toggle Switches Switch Toggle Spdt Vert R/A Pcb |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Lead Time | 49 Days |
| Unit Pack | 1 | Subcategory | Switch Toggle |
| Product Category | Toggle Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPDT | Power - Rated | 0.4@20VAC 20VDC VA |
| Voltage Rating | 20 V | Switch Function | On-On |
| Current Rating (Max) | 0.4VA (AC/DC) | Voltage - Input (Min) | 20 |
| Switch Function/Rating | ON None ON | ||
Mechanical
| Depth | 40.26 | Height | 12.7 |
| Packaging | Bulk | Contact Form | SPST |
| Actuator Type | Standard Round | Mounting Type | PC Mount with Bracket |
| Terminal Type | PC Pins | Bushing Thread | Unthreaded |
| Contact Finish | Gold/Nickel | Mounting Style | Through Hole |
| Actuator Length | 10.67mm | Contact Material | Copper Alloy |
| Length - Overall | 6.86 | Actuator Material | Brass, Chrome Plated |
| Termination Style | PC Pin | Actuator Style/Size | Round Toggle |
| Bushing, Grommet Type | 0.35 in | Switch Actuation Level | SPDT |
| Material - Housing & Prism | N/A/Stainless Steel | ||
Product Info
| Type | Miniature | Series | 7000 |
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 100,000 Cycles | For Use With/Related Products | 7101SY9AV2KE7101SY9AV2LE |
Environmental
| Seal Rating | Sealed | Operating Temperature | -30 to 85 °C |
