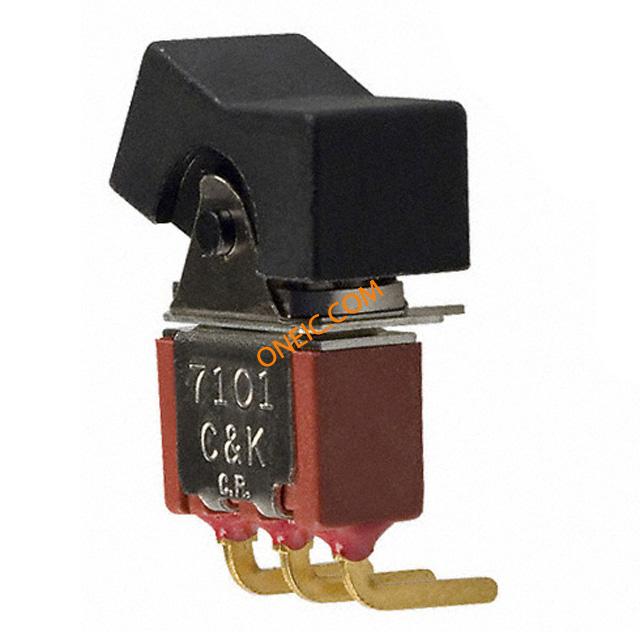

7101J1ABE2
| Manufacturer | |
| Description | Switch Rocker ON None ON SPDT PC Pins Long Rocker 20VAC 20VDC 0.4VA Rocker SWITCH ROCKER SPDT 0.4VA 20V Rocker Switches SP ON-NONE-ON 5A |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Lead Time | 49 Days |
| Unit Pack | 1 | Subcategory | Switch Rocker |
| Product Category | Rocker Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPDT | Power - Rated | 0.4@20VAC 20VDC VA |
| Voltage Rating | 20 V | Switch Function | On-On |
| Voltage - Rated AC | 20V VAC | Current Rating (Max) | 0.4VA (AC/DC) |
| Voltage - Input (Min) | 20 | Switch Function/Rating | ON None ON |
| Contact Rating @ Voltage | 0.4 VA at 20 V | Voltage - DC Spark Over (Nom) | 20V VDC |
Mechanical
| Color | Black | Depth | 25.22 mm |
| Height | 9.27 mm | Packaging | Bulk |
| Contact Form | SPDT | Actuator Type | Rocker |
| Mounting Type | Bracket Mount/Through Hole | Terminal Type | PC Pins |
| Contact Finish | Gold/Nickel | Mounting Style | Panel |
| Contact Material | Copper Alloy | Housing Material | Stainless steel |
| Length - Overall | 16.87 mm | Actuator Material | Nylon |
| Termination Style | PC Pin | Actuator Style/Size | Long Rocker |
| Color - Actuator/Cap | Black | Switch Actuation Level | SPDT |
| Illumination Type, Color | Not Required | Material - Housing & Prism | N/A/Stainless Steel |
Product Info
| Series | 7000 | DELETED | Compliant |
| Features | Epoxy Sealed Terminals | Electrical Life | 100,000 Cycles |
| Actuator Marking | No Marking | For Use With/Related Products | 7101J1AKE27101J1AME2 |
Environmental
| Seal Rating | Epoxy | Operating Temperature | -30 to 85 °C |
| Operating Temperature - Junction | 85C | ||
