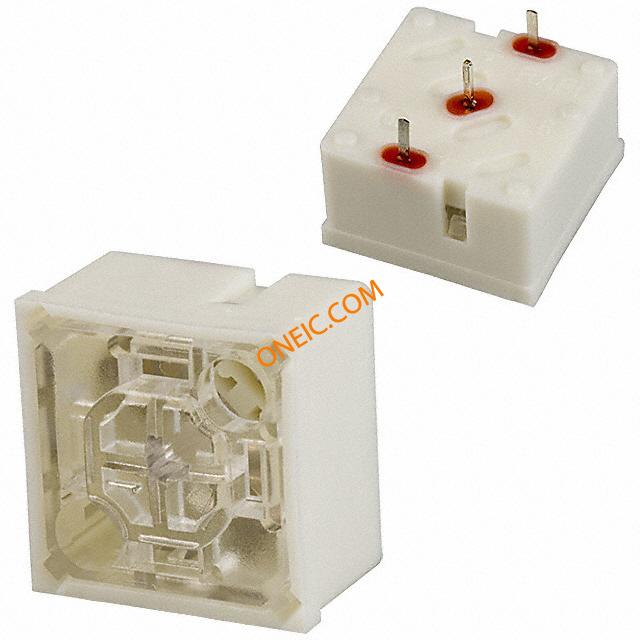

3.14100.0060000
| Manufacturer | |
| Description | Switch Tactile N.O. SPST Button PC Pins 0.25A 50VAC 50VDC 12.5VA 1000000Cycle 3N Thru-Hole Tube Switch Key N.O. SPST 0.25A 50VAC 50VDC 12.5VA 3N PC Pins Thru-Hole Tube SWITCH PUSH SPST-NO 0.25A 50V Pushbutton Switches RF15 SWITCH, WHITE Switch Tactile N.O. SPST Button PC Pins 0.25A 50VAC 50VDC 12.5W 1000000Cycle 3N Thru-Hole Tube SWITCH,PUSHBUTTON,SPST,N.O,0.25A50V |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | Switch Key |
| Part # Aliases | 3.14100.006/0000 | Product Category | Pushbutton Switches |
| Standard Package | Bulk | Factory Pack Quantity | 32 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Circuit | SPST-NO | Delay Time | 5 |
| Power - Max | 12.5 W | Power - Rated | 12.5 VA |
| Voltage Rating | 50 V | Switch Function | Off-Mom |
| Voltage - Rated AC | 50V | Current Rating (Max) | 0.25@50VAC 50VDC A |
| Insulation Resistance | 1000 | Voltage - Input (Min) | 50 |
| Switch Function/Rating | N.O. | Voltage - DC Reverse (Vr) (Max) | 50V |
Mechanical
| Depth | 15 mm | Height | 9.7 mm |
| Packaging | Tube | Row Spacing | 6.35 |
| Contact Form | SPST | Pitch - Post | 1.78 |
| Actuator Type | Square, Button | Mounting Type | Through Hole |
| Terminal Type | PC Pins | Actuator Color | Opaque White |
| Contact Finish | Silver | Mounting Style | Through Hole |
| Actuator Length | 0.7 mm | Operating Force | 3 N |
| Contact Material | Silver | Length - Overall | 15 mm |
| Termination Style | PC Pin | Number of Contacts | 3 |
| Actuator Style/Size | Button | Color - Actuator/Cap | Clear |
| Switch Actuation Level | SPST | Material - Housing & Prism | PBTB(Housing) |
Product Info
| Type | Short Travel | Electrical Life | 1000000 |
| Industry Aliases | 3.14100.0060000 | ||
Environmental
| Mechanical Life | 1000000 | Operating Temperature | -25 to 70 °C |
