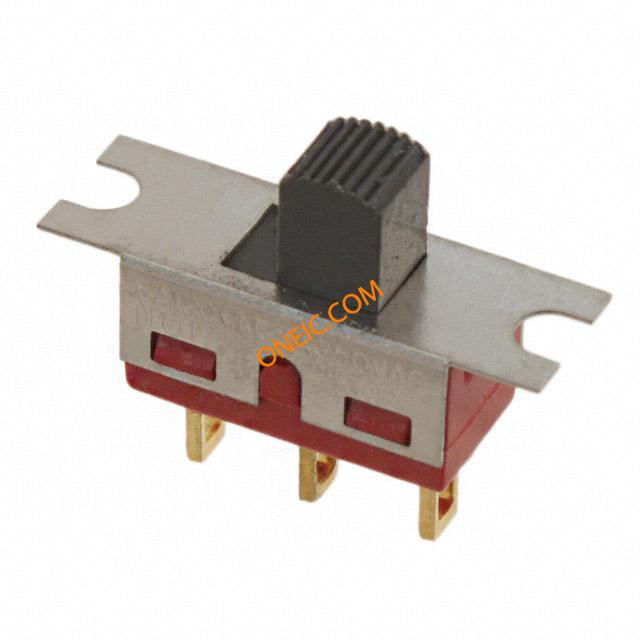

1101M1S3ZGE2
| Manufacturer | |
| Description | Switch Slide ON None ON SPDT Top Slide 6A 250VAC 28VDC 0.4VA Solder Lug Panel Mount Slide Switches ON None ON SPDT 6A 250VAC 28VDC Slide SWITCH SLIDE MINI SPDT PNL 120V |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Lead Time | 42 Days |
| Unit Pack | 1 | Subcategory | Switch Slide |
| Product Category | Slide Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPDT | Power - Rated | 0.4@20VAC 20VDC VA |
| Voltage Rating | 28 V | Switch Function | ON - NONE - ON |
| Current Rating (Max) | 6@120VAC 28VDC A | Voltage - Input (Min) | 250 V |
| Switch Function/Rating | ON None ON | Contact Rating @ Voltage | 6A @ 120VAC |
Mechanical
| Depth | 6.6 | Height | 15.37 |
| Orientation | Vertical | Contact Form | SPDT |
| Travel Range | 2.16 mm | Actuator Type | Standard |
| Mounting Type | Panel Mount | Terminal Type | Solder Lug |
| Contact Finish | Gold/Nickel | Mounting Style | PCB |
| Contact Material | Coin Silver | Length - Overall | 19.56 |
| Actuator Material | Nylon | Termination Style | Through Hole |
| Actuator Style/Size | Top Slide | Switch Actuation Level | SPDT |
| Material - Housing & Prism | N/A/Stainless Steel | ||
Product Info
| Type | Miniature | Series | 1000 |
| Illumination | Not Illuminated | Electrical Life | 40000 |
Environmental
| Operating Temperature | -30 to 65 °C | ||
