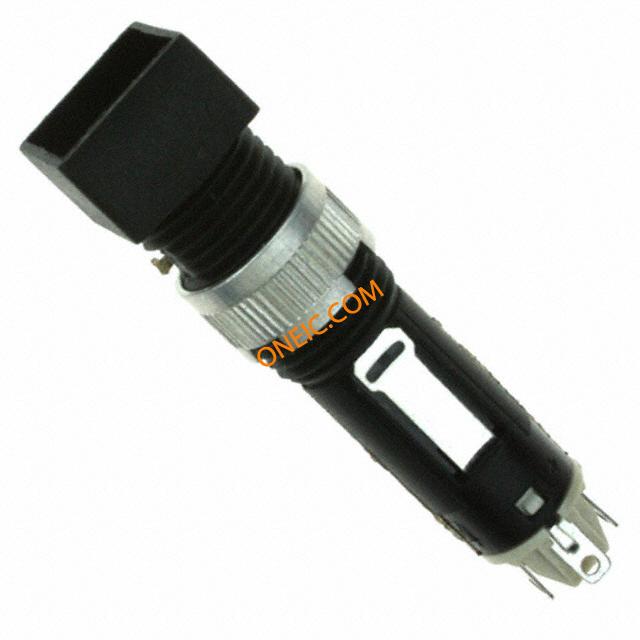

1.15116.0210000
| Manufacturer | |
| Description | Switch Push Button N.O. SPST Square Button 0.25A 42VAC 42VDC Momentary Contact Solder Panel Mount SWITCH PUSH SPST-NO 0.25A 42V Pushbutton Switches Switch,Lighted,SQUARELENS,SPST/NO,OFF-MOM,8.1MMHOUSING |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1.15116.021/0000 | Standard Package | Bulk |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
| Standards | UL94HBFlammabilityRating | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 42 V |
| Switch Function | Off-Mom | Contact Resistance | 100Milliohms(Max.) |
| Current Rating (Max) | 0.25@42VAC 42VDC A | Voltage - Input (Min) | 42 |
| Switch Function/Rating | N.O. | ||
Mechanical
| Depth | 8.9 | Height | 40 |
| Packaging | Bulk | Contact Form | SPST |
| Actuator Type | Square, Button | Mounting Type | Panel Mount |
| Terminal Type | Solder | Contact Finish | Tin |
| Mounting Style | Through Hole | Material - Body | PA6 |
| Contact Material | Gold | Length - Overall | 8.9 |
| Termination Style | Solder Lug | Illumination Color | Multiple |
| Actuator Style/Size | Square Button | Switch Actuation Level | SPST |
| Panel Cutout Dimensions | Circular - 8.10mm Dia | Illumination Type, Color | Filament Lamp |
| Material - Housing & Prism | Thermoset Plastic/Polyamide | ||
Product Info
| Type | Standard, Illuminated | Function | Momentary Contact |
| Illumination | Sold Separately | Manufacturer | 8.1mmSeries |
| Electrical Life | 1,000,000 Cycles | Application Specifics | Fortestinstrumentation,displaypanels,andprocessingequipment |
Environmental
| Rated Life | 1000000Cycles | Ingress Protection | IP40 |
| Operating Temperature | -25 to 55 °C | Operating Temperature - Junction | -25°C |
