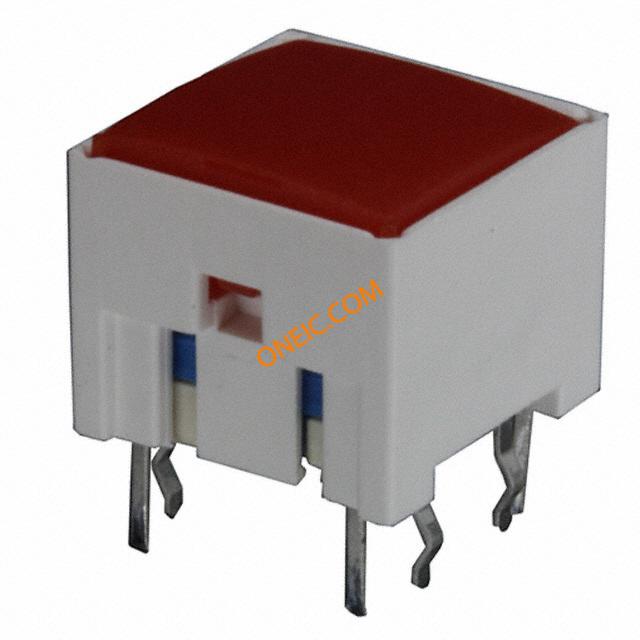

1.14001.5510000
| Manufacturer | |
| Description | PUSHBUTTON - ILLUMINATED & INDUSTRIAL CONTROLS Switch Key N.O. SPST 0.1A 42VAC 42VDC 1VA 3.3N PC Pins Thru-Hole Tube SWITCH PUSH SPST-NO 0.1A 42V Pushbutton Switches |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1.14001.551/0000 | Standard Package | 45 |
| Factory Pack Quantity | 45 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Circuit | SPST-NO | Delay Time | 5 |
| Power - Rated | 1 | Voltage Rating | 42V |
| Switch Function | Off-Mom | Current Rating (Max) | 100mA (AC/DC) |
| Insulation Resistance | 1000 | Voltage - Input (Min) | 42 |
| Switch Function/Rating | N.O. | Illumination Voltage (Nominal) | 1.8 VDC |
Mechanical

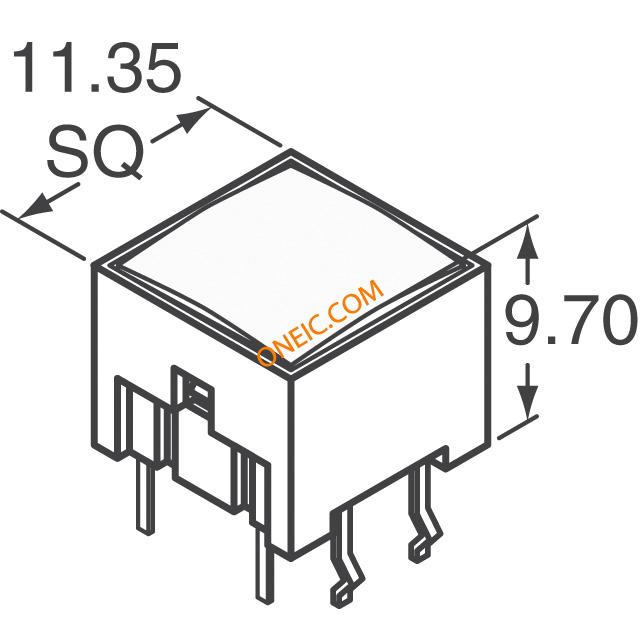

| Depth | 11.35 | Height | 9.7 |

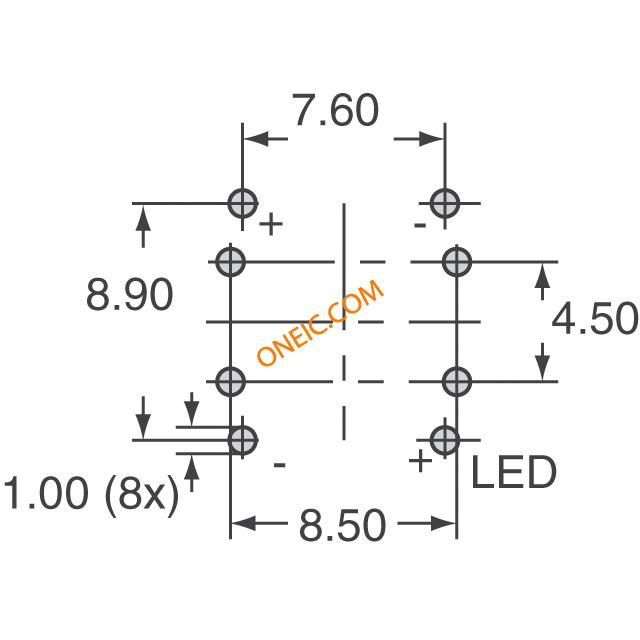

| Packaging | Tube | Row Spacing | 8.5 |
| Contact Form | SPST | Pitch - Post | 4.5 |
| Actuator Type | Square, Button | Mounting Type | Through Hole |
| Terminal Type | PC Pins | Contact Finish | Gold |
| Mounting Style | Through Hole | Operating Force | 3.3 |
| Contact Material | Gold | Length - Overall | 11.35 |
| Termination Style | PC Pin | Illumination Color | Red |
| Number of Contacts | 4 | Color - Actuator/Cap | Red |
| Switch Actuation Level | SPST | Illumination Type, Color | LED |
Product Info
| Type | Short Travel | Series | RACON |
| Illumination | LED | Electrical Life | 1000000 |
Environmental
| Mechanical Life | 1,000,000 Cycles | Operating Temperature | -40°C ~ 80°C |
