SA3349
| Manufacturer | |
| Description | Standard Circular Contacts CRIMP SKT 2&3P 20AWG 1 = 1 PKT of 10/pcs CONT SKT 8A CRMP 20-24AWG 1=10PC 400 Series 8A Female Circular Connector Contact, Crimp,Wire size 24 to 20AWG Contact SKT Crimp ST Cable Mount CRIMP SOCKET, 20-24AWG Contacts,CrimpSocket,2&3Pole Crimp contact, female, for 2 and 3-pole, SA3349, Bulgin Bulgin 400 系列 8A 母 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 24 → 20 AWG 线规格 |
| Category |
Business
| Other Names | 708-1086 | Product Category | Standard Circular Contacts |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85366990 | ||
Electrical
| Voltage Rating | 250 V ac/dc | Contact Resistance | 5mΩ |
| Current Rating (Max) | 8A | ||
Mechanical
| Weight | 0.001001 | Packaging | Bulk |
| Wire Gauge | 20-24 AWG | Termination | Crimp |
| Contact Size | :20 | Mounting Type | Cable Mount |
| Pin or Socket | Socket | Contact Finish | Gold |
| Contact Material | Copper Alloy | 1st Contact Gender | Socket (Female) |
| Contact Termination | Crimp | Wire Gauge or Range - AWG | :24AWG |
| Wire Gauge or Range - mm2 | :0.5mm² | Diameter - Outside, Non-Expanded | :0.81mm |
Product Info
| Gender | Female | Series | 400 |
| For Use With/Related Products | :400 Series Buccaneer Connector System | ||
Environmental
| Operating Temperature | +80°C | ||
Documents & Media
Similar Parts
14025
Bulgin
Crimpers CRIMP TOOL FOR 400S TOOL CRIMP USE W/POSITIONERS Crimp tool; 8 Indent; for use with positioners Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts CRIMP TOOL, 400 SERIES Crimptool,8Indent,forusewithpositioners Crimping pliers without limit stop, 14025, Bulgin
14025/8AMP
Bulgin
Crimpers POSITIONER 8A BLUE TOOL CRIMP POSITIONER FOR 8A Positioner For 8A Crimp Tool POSITIONER, 20-24AWG PositionerFor8ACrimpTool Limit stop for contacts SA3350/3349, 14025/8AMP, Bulgin Bulgin 14025 2, 3 触点 压接工具 定位器

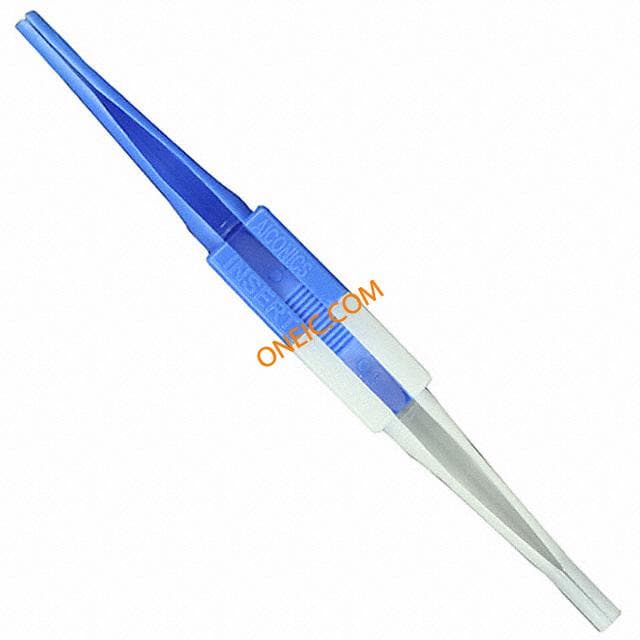

13027/2
Bulgin
Hand Tools INSERTION/EXTRA TOOL TOOL INSERTION FOR 8A CONT BLUE Insertion tool for 8A contacts Contact Insertion Tools INSERTION TOOL, 20-24AWG Insertion/ExtractionTool,CableSupport;25WayContacts;Buccaneer Assembly/disassembly tool for contacts SA3350/3349, 13027/2, Bulgin Bulgin 400 系列 插入工具 (24 → 20AWG)
PX0410/02S/6570
Bulgin
Standard Circular Connector 2 POLE FLEX SKT 6.5-7.0MM BLACK CONN HSNG PLUG CABLE 2POS SOCKET
PX0413/03S/PC
Bulgin
Standard Circular Connector PCB PIN CONN- 3 POLE CONN RCPT 3POS PNL MNT PCB SKT 3 Pole Straight Through Hole Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, PCB, IP68, 3POLE 400SeriesBuccaneerSealedPCBMountConnectorsSocket(3pos)8Amp Bulgin Buccaneer 系列 3路 通孔 直向 连接器 , 母触点

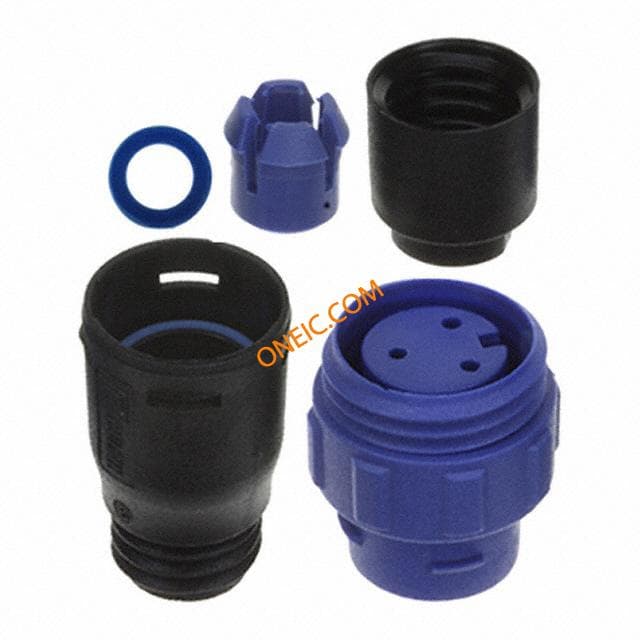

PX0411/03S/5560
Bulgin
Standard Circular Connector 3 POLE IN-LINE SKT CONN HSNG RCPT IN-LINE 3POS SKT 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CableConnector,In-Line;3;Socket;5.5to6.0mm;FlexIn-LineBody;8A;250 Connector: circular; plug; female; PIN:3; w/o terminals; for cable Coupling socket Buccaneer 400, 3-pole 3, PX0411/03S/5560, Bulgin Bulgin Buccaneer 系列 3路 电缆安装 直向 连接器 , 母触点
PX0410/03S/5055
Bulgin
Standard Circular Connector 3 POLE FLEX SKT 5.0-5.5MM YELLOW CONN HSNG PLUG CABLE 3POS SOCKET Conn Buccaneer SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port

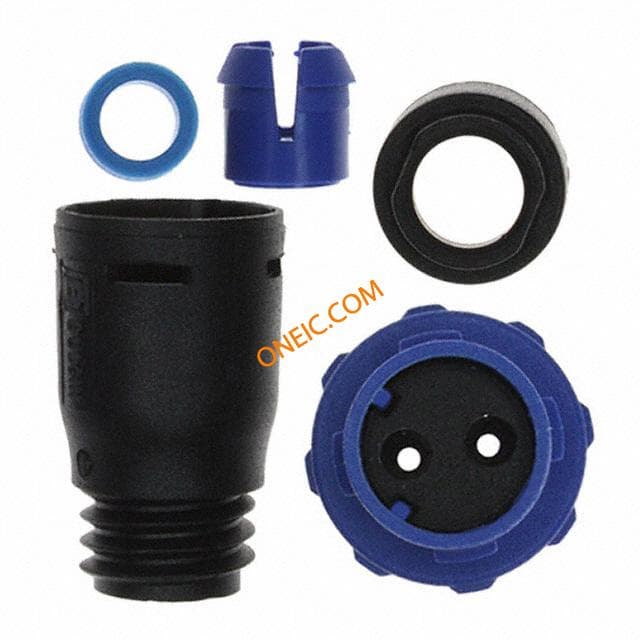

PX0411/02S/5560
Bulgin
Standard Circular Connector 2 POLE IN-LINE SKT CONN HSNG RCPT IN-LINE 2POS SKT 2 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, IN-LINE, 2WAY CableConnector,In-Line;2;Socket;5.5to6.0mm;FlexIn-LineBody;8A;250 Coupling socket Buccaneer 400, 2-pole 2, PX0411/02S/5560, Bulgin Bulgin Buccaneer 系列 2路 电缆安装 直向 连接器 , 母触点

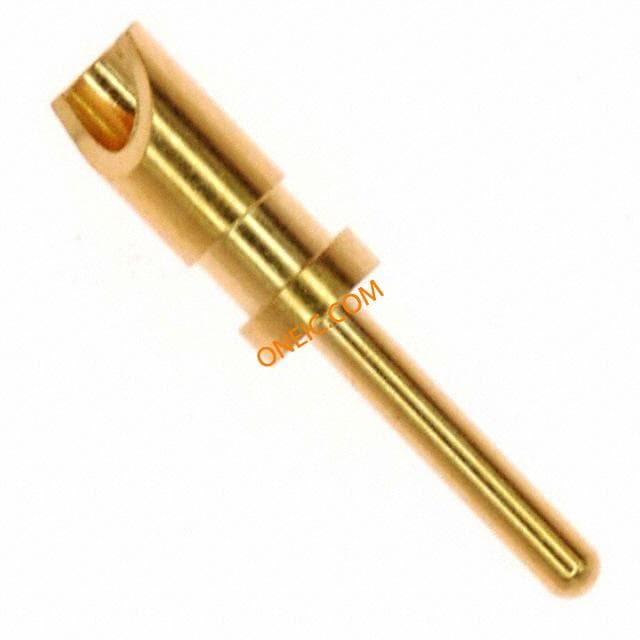

SA3350
