SA3244
| Manufacturer | |
| Description | Standard Circular Connector 6 POLE SKT INSERT CONN TERM INSERT 6POS SCKT SCREW Female Circular Connector Insert 6 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer SKT 6 POS Screw ST Cable Mount 6 Terminal 1 Port INSERT, SOCKET, 6WAY INSERT,SOCKET,6CONTACTS Bulgin 6路 母 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C |
| Category |
Business
| Other Names | 708-1246 | Product Category | Standard Circular Connector |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 250VAC | Voltage - Working | :250V |
| Contact Resistance | :5mohm | Current Rating (Max) | 3A |
Mechanical
| Weight | 0.014 | Material | :Black Nylon |
| Packaging | Bulk | Wire Gauge | :0.2mm² |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Screw | Shell Plating | Gold over Nickel |
| Connector Type | Insert, Female Sockets | Contact Finish | Nickel |
| Mounting Style | Free Hanging | Insertion Angle | :- |
| Contact Material | :Copper | Termination Style | Screw |
| 1st Contact Gender | :Socket | Number of Contacts | 6 |
| Contact Termination | :Screw | Number of Positions | 6 |
| Shell Size - Insert | :- | Wire Gauge or Range - mm2 | :1mm² |
| Diameter - Outside, Non-Expanded | :7mm | ||
Product Info
| Gender | Female | Series | Buccaneer Mini |
| Features | Insert Only, Requires Shell | Product Type | Connectors |
| For Use With/Related Products | Mini Buccaneer Connector | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
Similar Parts
PX0800/07
Bulgin
Standard Circular Connector FLEX CBL CON BODY CONN HSNG INSERT SHELL CABLE Connector Accessories Circular Body With Cable Gland Polyamide

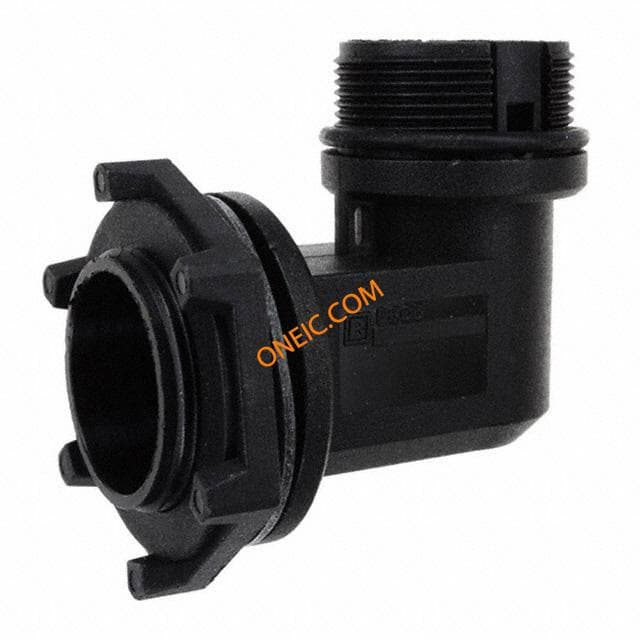

PX0803
