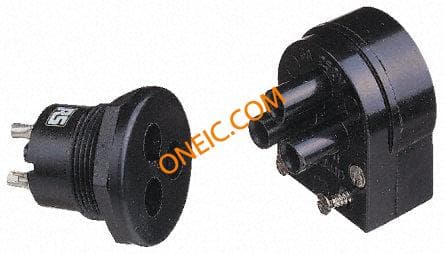

SA2403
| Manufacturer | |
| Description | Standard Circular Connector CIRCULAR MALE CONN 3 POLE CONN PLUG 3POS CABLE PIN Male Compact Power Connector Cable Mount,Screw Down Termination,3A 250V ac PLUG, SHROUDED, 3WAY, RIGHT ANGLE Bulgin 电源连接器 公, 电缆安装安装, 螺钉拧紧端接, 3A 250 V 交流, -20 → +70 °C |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Standard Circular Connector | Standard Package | 1 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 250VAC | Number of Poles | :3 |
| Contact Resistance | :10mohm | Voltage - Breakdown | :4.2kV |
| Current Rating (Max) | 3A | Insulation Resistance | :10000Mohm |
Mechanical
| Depth | :26.1mm | Width | :25.5mm |
| Length | :30.5mm | Weight | 0.01 |
| Material | :Glass Filled Nylon | Packaging | Bulk |
| AC Outlets | :1 | Orientation | Keyed |
| Shell Style | Plug | Termination | Screw |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug, Male Pins |
| Contact Finish | Nickel | Fastening Type | Push-Pull |
| Shell Material | Plastic | Contact Material | Brass |
| Termination Style | Screw | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Push-Pull | Number of Contacts | 3 |
| Contact Termination | :Screw | Number of Positions | 3 |
| Shell Material, Finish | Nylon, Glass Filled | 1st Connector Mounting Type | :Cable |
Product Info
| Gender | Male | Series | :- |
| Product Type | Connectors | ||
Environmental
| Operating Temperature | -20°C ~ 70°C | ||
