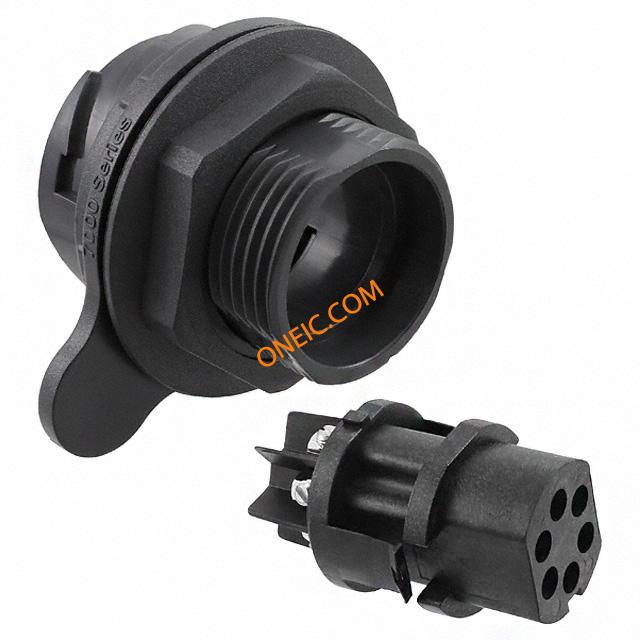

PXP7012/06S/ST
| Manufacturer | |
| Description | CONN RCPT PNL MNT 6POS W/SKTS Standard Circular Connector 6Pole female front PanelMnt screw term CIRCULAR CONN, RECEPTACLE, 6 WAY, PANEL Connector;FrontPanelMnt;6-Pole;Fem./Socket;ScrewTerm.;Thermoplastic Panel-mount connector 6, PXP7012/06S/ST, Bulgin Bulgin Buccaneer 系列 7000 6路 面板安装 直向 连接器 插头 , 母触点, 快速连接接合 |
| Category |
Business
| Other Names | 708-1657 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 10A |
| Connector - Voltage Input | Female | ||
Mechanical
| Weight | 0.045 | Packaging | Bulk |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Screw | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Nickel |
| Fastening Type | Bayonet Lock | Mounting Style | Panel |
| Insertion Angle | :- | Material - Body | :PBT (Polybutylene Terephthalate), PC (Polycarbonate) |
| Contact Material | Brass | Housing Material | Polycarbonate (PC), Polybutylene Terephthalate (PBT) |
| Termination Style | Screw | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Contact Termination | :Screw |
| Number of Positions | 6 | Shell Size - Insert | :(Not Available) |
| Shell Material, Finish | Polycarbonate/Polybutylene Terephthalate (PBT) | 1st Connector Mounting Type | :Panel |
Product Info
| Gender | :Receptacle | Series | 7000 |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | Operating Temperature | -40°C ~ 120°C |
Similar Parts
PXP7010/06P/ST/0709
Bulgin
CONN PLUG FLEX 6POS W/PINS Standard Circular Connector 6 pole Flex Conn male screw term CIRCULAR CONNECTOR, PLUG, 6 WAY, CABLE Connector;Flex;6-P;Male/Pin;ScrewTerm.;7-9mmCableEntry;Thermoplastic Cable Receptacle 6, PXP7010/06P/ST/0709, Bulgin Bulgin Buccaneer 系列 7000 6路 自由悬挂 直向 连接器 插座 , 公触点, 快速连接接合
PXP7010/06P/ST/0507
Bulgin
CONN PLUG FLEX 6POS W/PINS Standard Circular Connector 6 pole Flex Conn male screw term Connector;Flex;6-P;Male/Pin;ScrewTerm.;5-7mmCableEntry;Thermoplastic

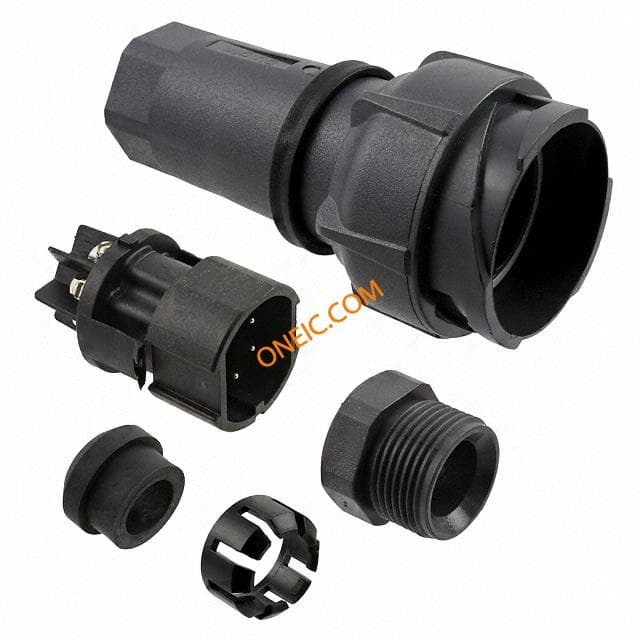

PXP7010/06P/ST/0911
Bulgin
CONN PLUG FLEX 6POS W/PINS Standard Circular Connector 6 pole Flex Conn male screw term Connector;Flex;6-P;Male/Pin;ScrewTerm.;9-11mmCableEntry;Thermoplastic

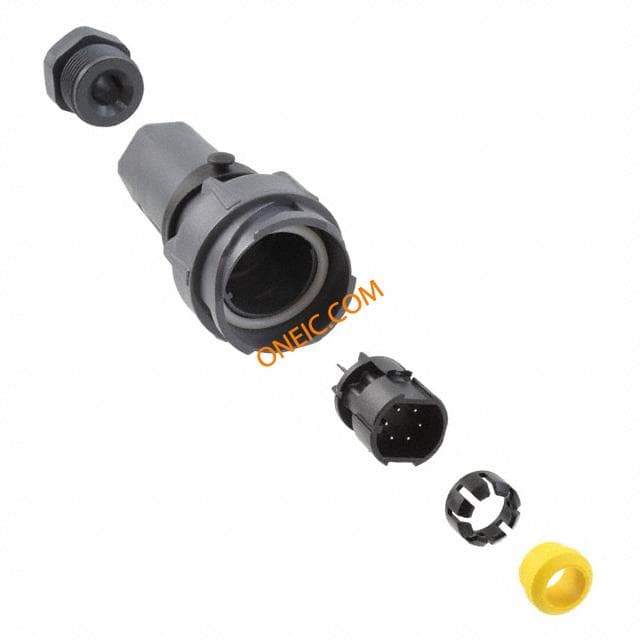

PXP7010/06P/ST/1113
