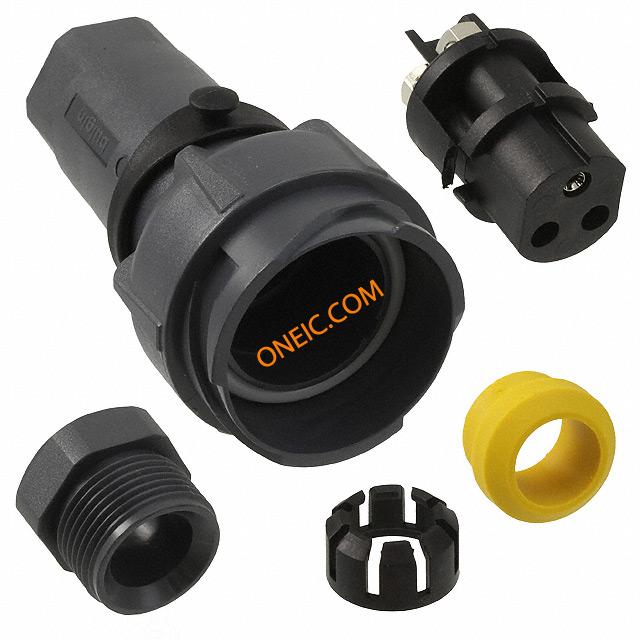

PXP7011/03S/ST/1113
| Manufacturer | |
| Description | CONN RCPT FLEX 3POS W/SKTS Standard Circular Connector 3P In-Line FlexConn female screw term Conn.;In-LineFlex;3-P;Fem./Socket;ScrewTerm.;11-13mmCableEntry;Thermoplastic |
| Category |
Business
| Other Names | 708-1724 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 25A |
| Connector - Voltage Input | Female | ||
Mechanical
| Packaging | Bulk | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Screw |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Nickel | Fastening Type | Bayonet Lock |
| Mounting Style | In-Line | Contact Material | Brass |
| Housing Material | Polycarbonate (PC), Polybutylene Terephthalate (PBT) | Termination Style | Screw |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 3 |
| Number of Positions | 3 | Shell Material, Finish | Polycarbonate/Polybutylene Terephthalate (PBT) |
Product Info
| Series | 7000 | Product Type | Connectors |
Environmental
| Ingress Protection | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | Operating Temperature | -40°C ~ 120°C |
Similar Parts
PXP7010/03P/ST/1315
Bulgin
CONN PLUG FLEX 3POS W/PINS Standard Circular Connector 3 pole Flex Conn male screw term CIRCULAR CONNECTOR, PLUG, 3 WAY, CABLE Connector;Flex;3-P;Male/Pin;ScrewTerm.;13-15mmCableEntry;Thermoplastic Cable Receptacle 3, PXP7010/03P/ST/1315, Bulgin Bulgin Buccaneer 系列 7000 3路 自由悬挂 直向 连接器 插座 , 公触点, 快速连接接合
PXP7010/03P/ST/0507
Bulgin
CONN PLUG FLEX 3POS W/PINS Standard Circular Connector 3 pole Flex Conn male screw term Connector;Flex;3-P;Male/Pin;ScrewTerm.;5-7mmCableEntry;Thermoplastic

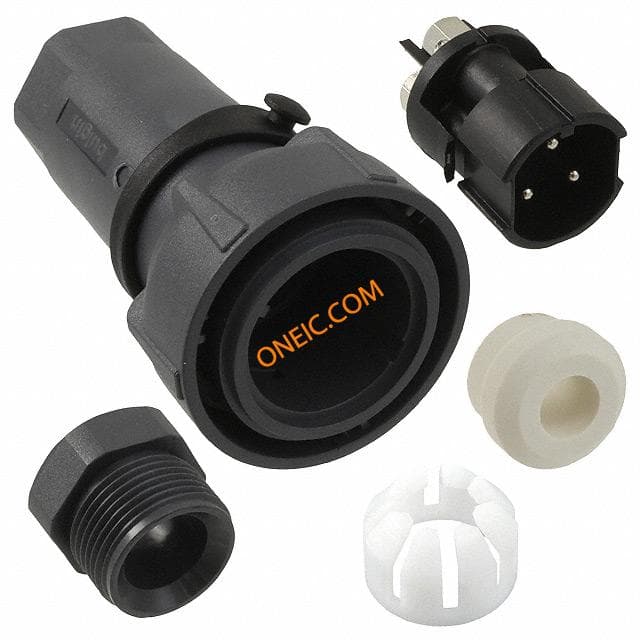

PXP7010/03P/ST/0709
Bulgin
CONN PLUG FLEX 3POS W/PINS Standard Circular Connector 3 pole Flex Conn male screw term

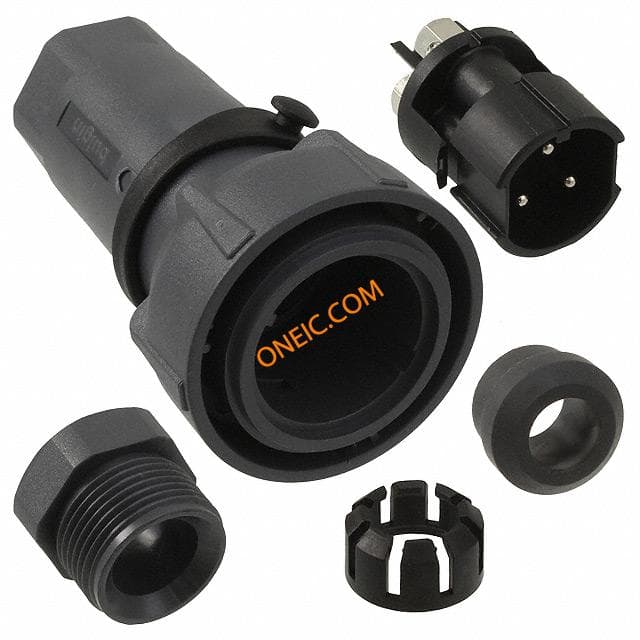

PXP7010/03P/ST/0911
Bulgin
CONN PLUG FLEX 3POS W/PINS Standard Circular Connector 3 pole Flex Conn male screw term

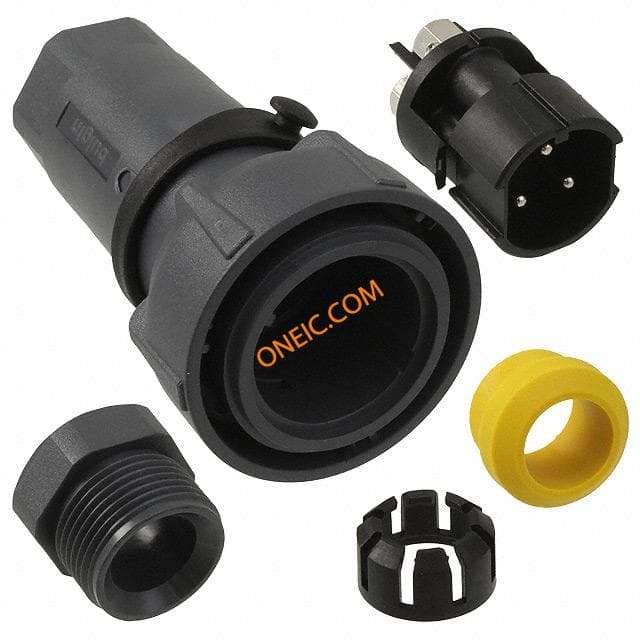

PXP7010/03P/ST/1113
Bulgin
CONN PLUG FLEX 3POS W/PINS Standard Circular Connector 3 pole Flex Conn male screw term Connector;Flex;3-P;Male/Pin;ScrewTerm.;11-13mmCableEntry;Thermoplastic
PXP7088/0713
Bulgin
CABLE GLAND PACK 7 - 13MM Standard Circular Connector CblGlandPack 7 &13mm gland, cage and nut CABLE GLAND PACK, FOR 7 TO 13MM CABLE CableGlandPack;for7-13mmCableSizes;IncludesGland,Cage,&Nut Gland pack for cable 7...13 mm, PXP7088/0713, Bulgin Bulgin 黑色，灰色，白色，黄色 IP66，IP68，IP69K 热塑塑料 电缆密封接头套件 , 7 → 13mm 电缆直径, 包含笼，固定头，压紧螺母
PXP7082
Bulgin
CAP SEAL FOR PXP7011 AND PXP7012 Standard Circular Connector Seal Cap for PXP7011 In-Line & PXP7012 SEALING CAP, FOR PXP7011 PLUG, PLASTIC SealingCap:FitsPXP7011(In-Line)andPXP7012(PanelMnt)Connectors Cap for plastic cable plug, PXP7082, Bulgin Bulgin PXP 7000 系列 插座 IP68，IP69K 防尘盖
