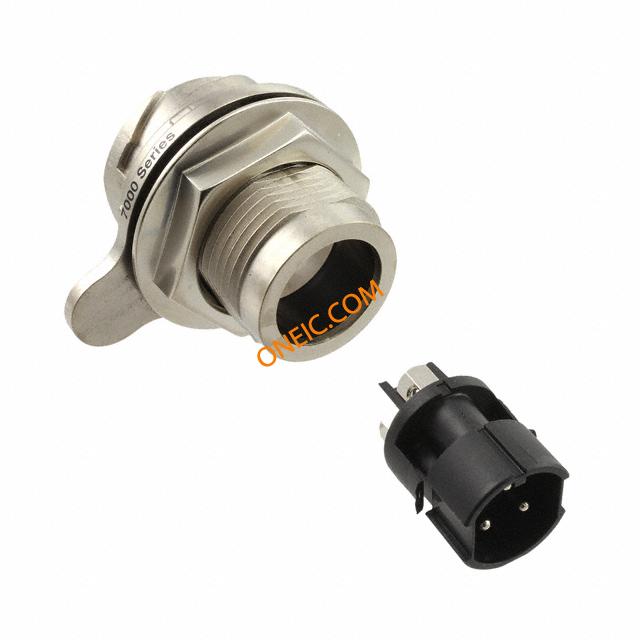

PXM7012/03P/ST
| Manufacturer | |
| Description | CONN RCPT PNL MNT 3POS W/PINS Standard Circular Connector Metal 3pos Male Panel Mnt screw term CIRCULAR CONN, RECEPTACLE, 3 WAY, PANEL Connector;PanelMount;3-Pole;Male/Pin;ScrewTerm.;Metal;7000Series Panel-mount connector 3, PXM7012/03P/ST, Bulgin Bulgin Buccaneer 系列 7000 3路 面板安装 直向 连接器 插座 , 公触点, 快速连接接合 |
| Category |
Business
| Other Names | 708-1841 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 25A |
| Connector - Voltage Input | Female | ||
Mechanical
| Weight | 0.152 | Packaging | Bulk |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Screw | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Shell Plating | Nickel | Connector Type | Receptacle, Male Pins |
| Contact Finish | Nickel | Fastening Type | Bayonet Lock |
| Mounting Style | Panel | Shell Material | Zinc Alloy |
| Insertion Angle | :- | Material - Body | :Zinc |
| Contact Material | Brass | Termination Style | Screw |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 3 |
| Contact Termination | :Screw | Number of Positions | 3 |
| Shell Size - Insert | :(Not Available) | Shell Material, Finish | Zinc Alloy, Nickel Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Gender | :Receptacle | Series | 7000 |
| Features | Shielded | Product Type | Connectors |
Environmental
| Ingress Protection | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | Operating Temperature | -40°C ~ 120°C |
