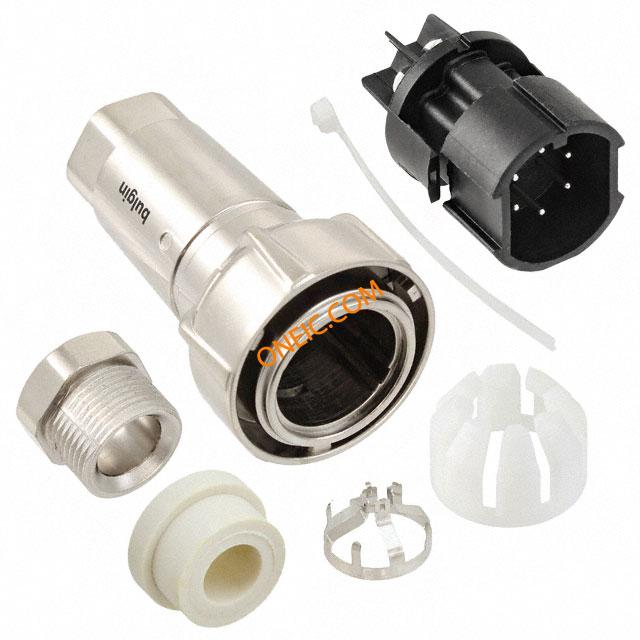

PXM7010/06P/ST/0709/SN
| Manufacturer | |
| Description | CONN PLUG FLEX 6POS W/PINS Standard Circular Connector Metal FlexConn 6pos male screw w/screen CIRCULAR CONNECTOR, PLUG, 6 WAY, CABLE Connector;Flex;6-Pole;Male/Pin;ScrewTerm.;7-9mmCableEntry;Metal;w/Screen Cable Receptacle 6, PXM7010/06P/ST/0709/SN, Bulgin Bulgin Buccaneer 系列 7000 6路 自由悬挂 直向 连接器 插座 , 公触点, 快速连接接合 |
| Category |
Business
| Other Names | 708-1780 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 600V | Voltage - Working | :500V |
| Current Rating (Max) | 10A | Connector - Voltage Input | Male |
Mechanical
| Weight | 0.213 | Packaging | Bulk |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Screw | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Nickel | Fastening Type | Bayonet Lock |
| Mounting Style | Wire | Shell Material | Zinc Alloy |
| Insertion Angle | :- | Material - Body | :Zinc |
| Contact Material | Brass | Termination Style | Screw |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Quick Lock |
| Number of Contacts | 6 | Contact Termination | :Screw |
| Number of Positions | 6 | Shell Size - Insert | :(Not Available) |
| Shell Material, Finish | Zinc Alloy, Nickel Plated | 1st Connector Mounting Type | :Cable |
| Diameter - Outside, Non-Expanded | :9mm | ||
Product Info
| Gender | :Plug | Series | 7000 |
| Features | Shielded | Product Type | Connectors |
Environmental
| Ingress Protection | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | Operating Temperature | -40°C ~ 120°C |
