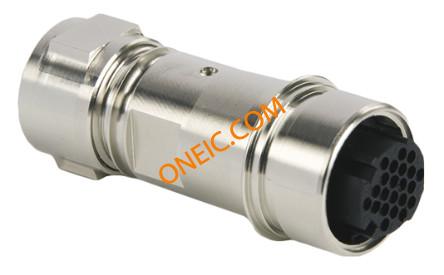

PXM6011/22S/CR/0910/SN
| Manufacturer | |
| Description | CONN HSNG RCPT IN-LINE 22POS SKT Flex in-line connector,22w,skt.contacts Standard Circular Connector FLEX CONCT 22 POLE METAL VERSION CONNECTOR, CIRCULAR, RCPT, 22POS, CABLE Flexin-lineconnector,22polesocketcontacts Bulgin 6000 系列 22路 电缆安装 直向 连接器 插座 , 母触点, 推挽式接合 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 60 V ac/dc | Current Rating (Max) | 3A |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Shell Size | 26mm | Orientation | Keyed |
| Termination | Crimp | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle for Female Contacts |
| Contact Finish | Nickel | Fastening Type | Push-Twist |
| Connector Usage | Push-Pull | Material - Body | :Brass |
| Contact Material | Brass | Housing Material | Brass |
| 1st Contact Gender | Female | Number of Contacts | 22 |
| Number of Positions | 22 | Shell Size - Insert | :- |
| Shell Material, Finish | Brass, Nickel Plated | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 6000 | Features | Shielded |
Environmental
| Seal Rating | IP66, IP68, IP69K | Ingress Protection | IP66/68/69K - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | +120°C | ||
